Description
**BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty applications. Because of the high-stress nature of their use, these engines are sold without any warranty, expressed, or implied.
Overview:

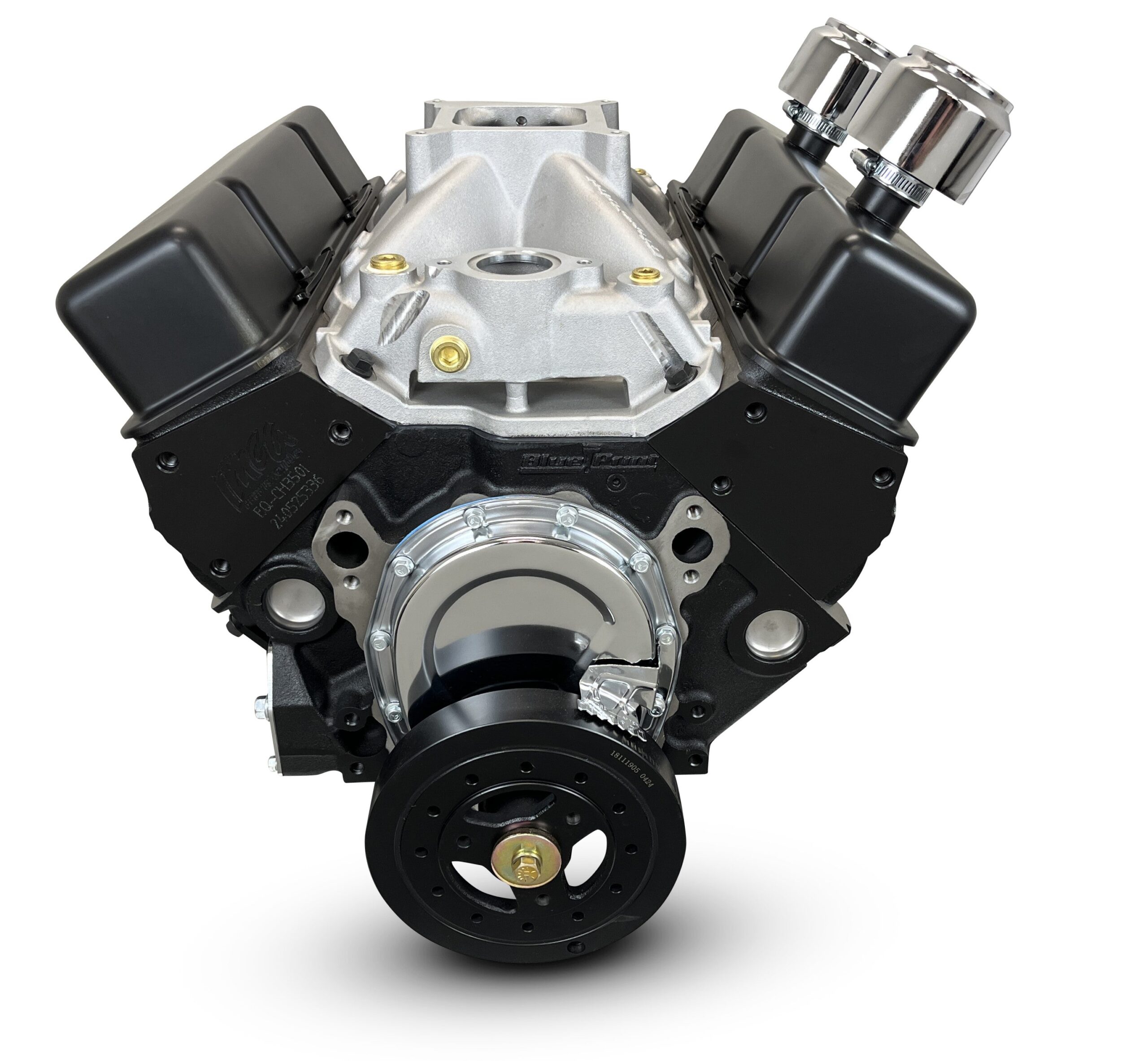

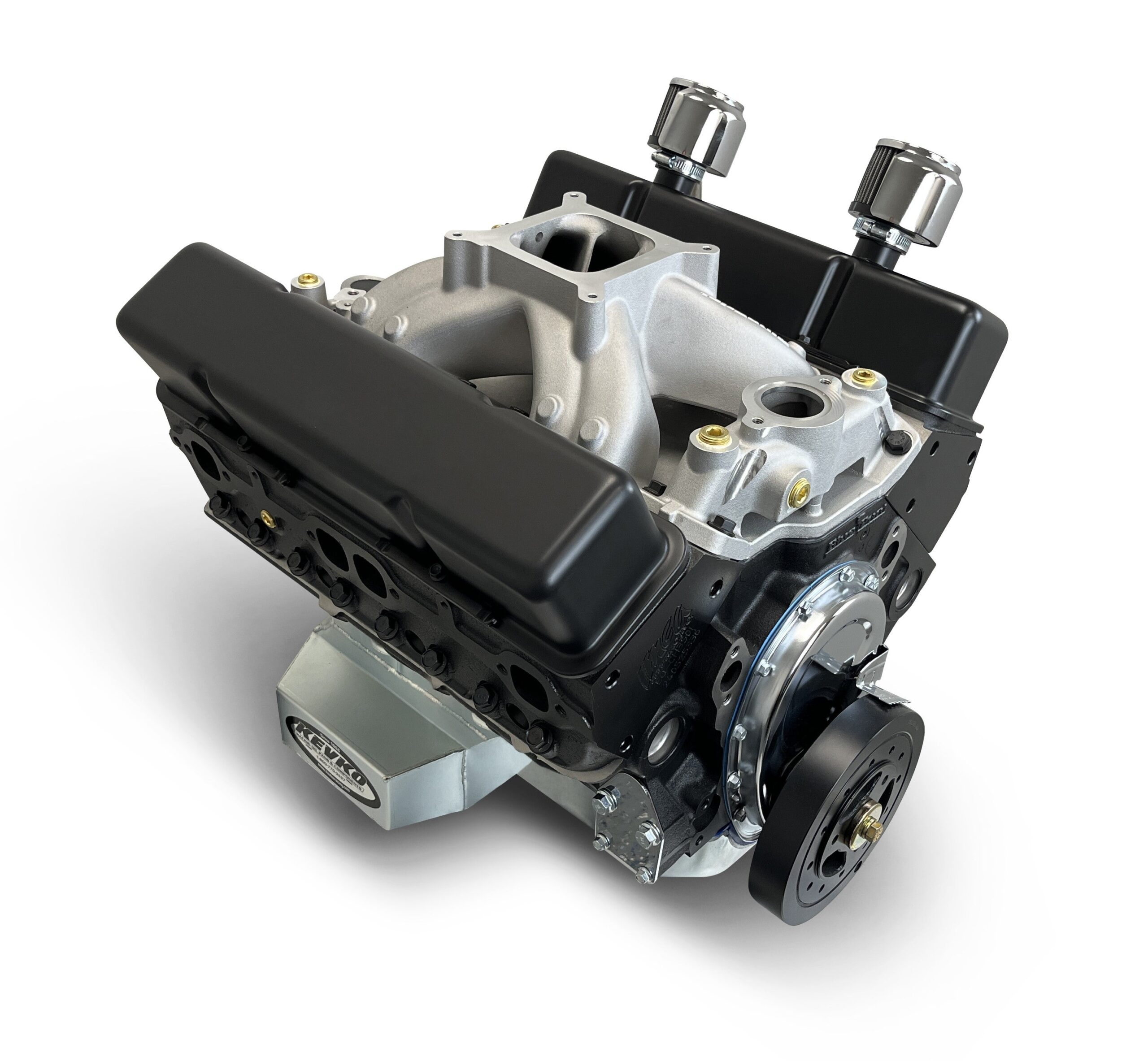

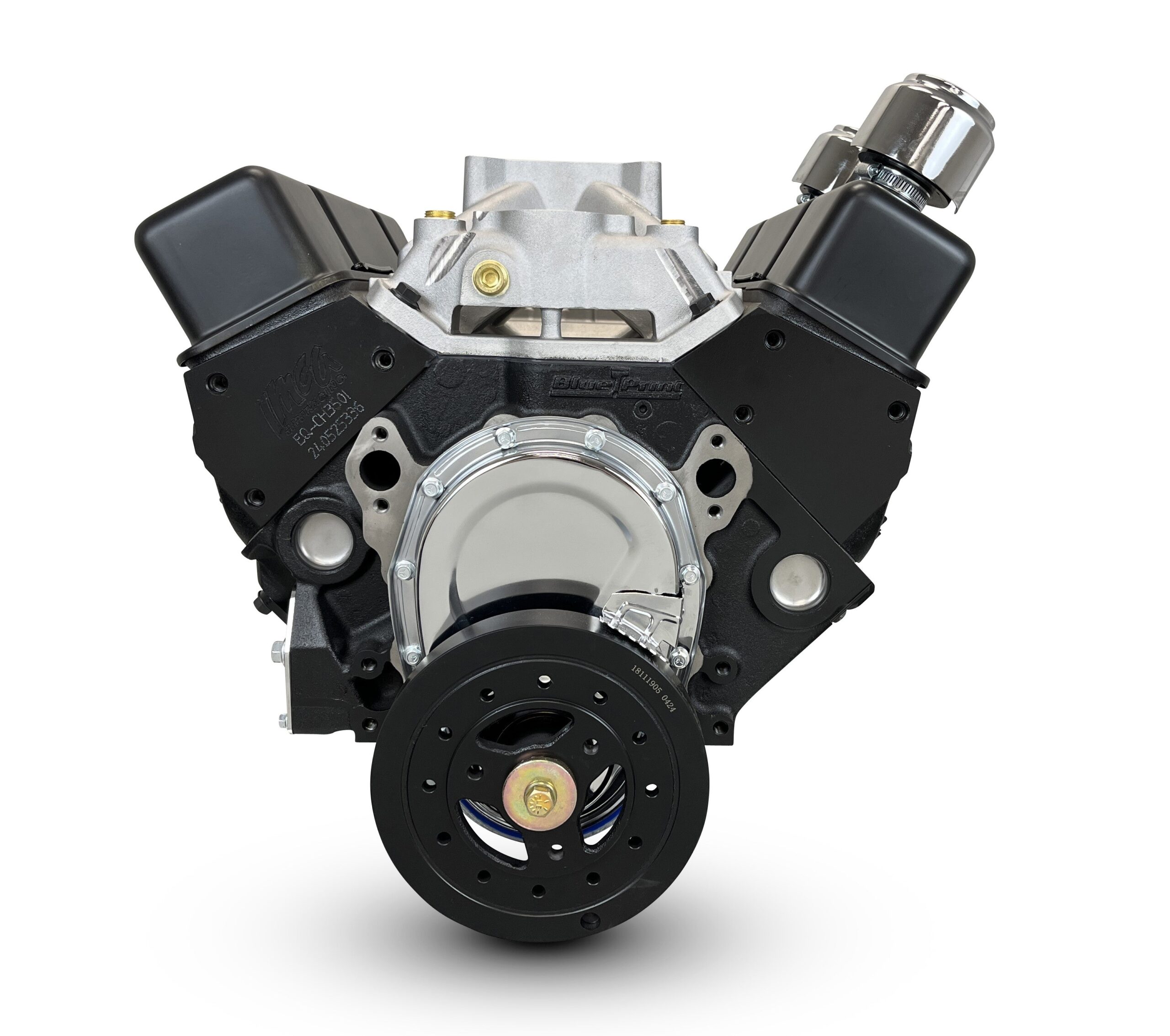

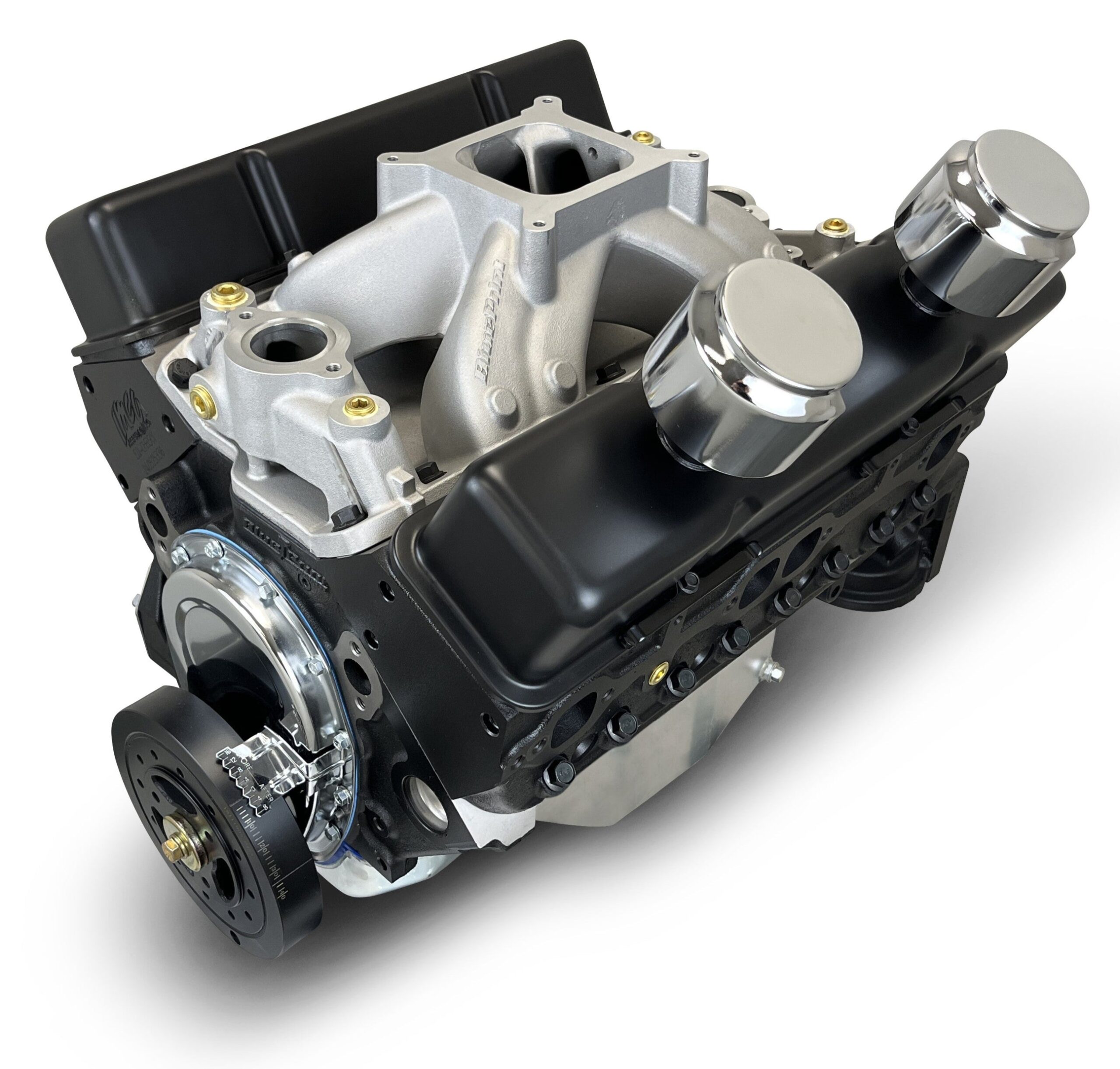

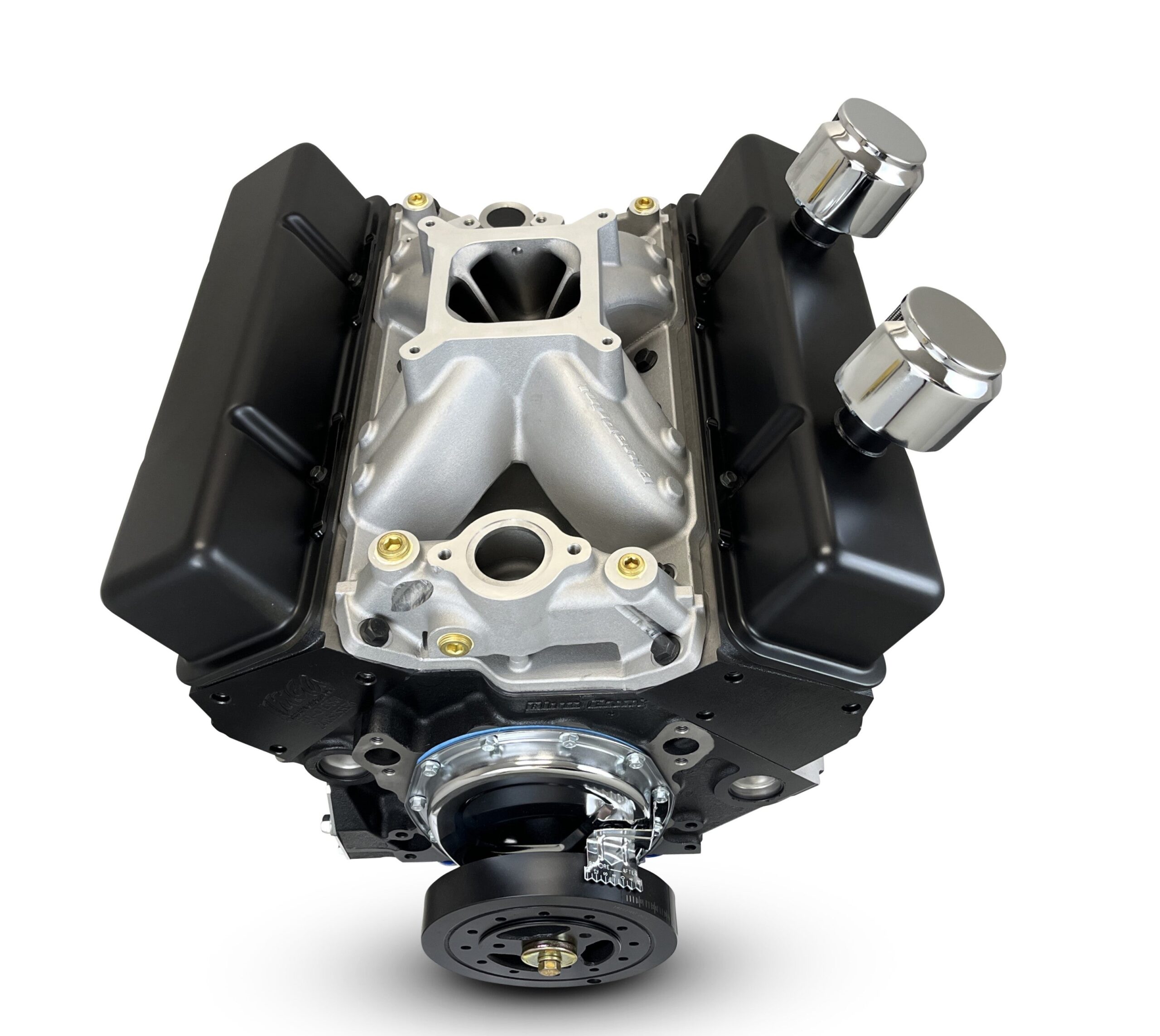

BluePrint Motorsports unleashes the BluePrint 602 GM-Compatible Circle Track Crate Engine. Power, durability, and affordability come together in the new BluePrint Circle Track Crate Engine. Engineered for sanctioned racing bodies, this high-performance powerhouse delivers the reliability and performance needed to dominate the track and chase victory. This engine is compatible with the GM Performance 602 crate engine part number 12119433602.
Description:
- Horsepower & Torque: Dyno Results Coming Soon…
- Compression Ratio: 9.1:1
- Cast Iron Heads
- Hydraulic Flat Tappet Camshaft
- BluePrint Engines Cast Crankshaft
- Hypereutectic Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.000″ Bore
Rotating Assembly:
- Cast Crankshaft
- 3.480″ Stroke
- Forged 5.700″ Connecting Rods
- Hypereutectic Pistons
- Internally Balanced Front – External Balanced Rear
Cylinder Heads:
- Cast Iron Vortec
- 62cc Chamber
- 1.94″ Intake / 1.50″ Exhaust Valves
Cam Specs:
- Hydraulic Flat Tappet
- .435 Intake / .460 Exhaust Lift
- 212 Intake / 222 Exhaust Duration
- @ .050-112.5 Degree Lobe Separation
Ignition Timing:
- 34 Degrees Total Timing
Also Includes:
- Dual Plan Satin Aluminum Intake – BPP350VINT
- Dipstick and Tube – BPP9420
- Rear Sump Oil Pan
- Timing Cover
- Valve Covers
Notes:
- BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty applications. Because of the high-stress nature of their use, these engines are sold without any warranty, expressed, or implied.
