Description

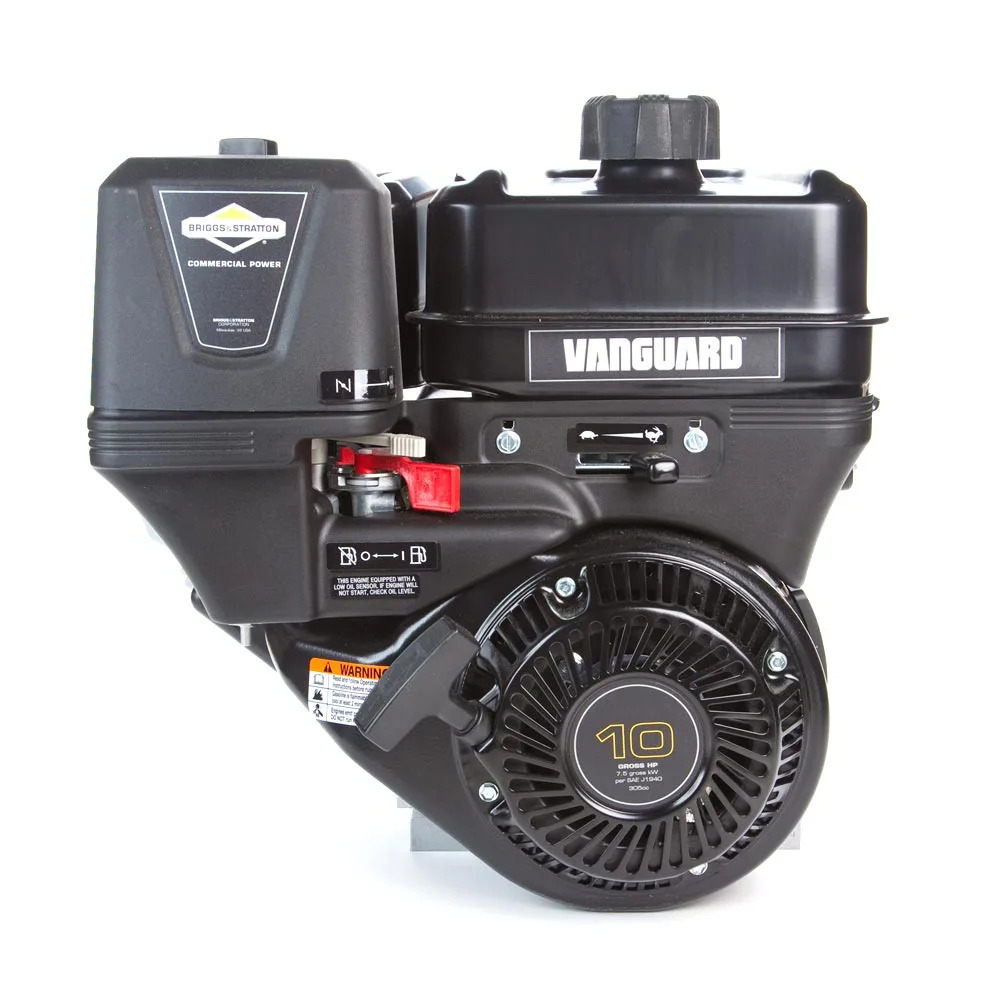

Briggs Stratton 19L232-0037-F1 horizontal Vanguard engine is 305cc and puts out 10.0 HP (maximum horsepower). This single-cylinder Vanguard has a 1″ x 3-21/32″ crankshaft with a 1/4″ keyway. Briggs Stratton Vanguard engines are made to operate under the most challenging conditions – the TransportGuard fuel/ignition shut-off system provides added protection, a commercial-style carburetor supports reliable starting and a metal fuel tank helps reduce emissions. Common applications include concrete equipment, blowers, generators, tillers, pumps, pressure washers and more. Buyer protection package provides three-year limited consumer engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.
Key Specifications
| BRAND | Briggs Stratton |
|---|---|
| MODEL NUMBER | 19L232-0037-F1 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 66 |
| DISPLACEMENT | 305cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1″ x 3-21/32″ |
| CRANKSHAFT LENGTH | 3-21/32″ |
| CRANKSHAFT END TAPPED SIZE | 7/16 – 20 |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Dual Ball |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron Sleeve |
| AIR CLEANER TYPE | Cartridge with Pre Filter |
| FUEL TANK | Yes |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 28 |
| LOW OIL ALERT | Yes |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| MAX RPM | 3600 |
| CHARGING SYSTEM | None |
| BOLT CIRCLE | 3-5/8″, 5, 6-1/2 |
| FLYWHEEL | Heavy |
| NOTES | Engine Notes: |
| PTO HEIGHT | 4 – 11/64 |
