Description
Description:
- Horsepower & Torque: 365 Horsepower / 365 ft. lbs. Torque
- Compression Ratio: 10.0:1
- Aluminum Heads
- Hydraulic Roller Cam
- Hypereutectic Pistons
Block:
-
BluePrint Engines High Strength Cast Iron Block
-
4-Bolt Main
-
4.000″ Bore
-
1-Piece Rear Main Seal
Rotating Assembly:
- Cast Crankshaft
- 3.000″ Stroke
- OEM Type 5.090″ Connecting Rods
- Hypereutectic Pistons
- 50oz External Balance
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads – HP9009
- 60cc Chamber
- 2.02″ Intake / 1.60″ Exhaust Valves
- 190cc Intake / 60cc Exhaust Runners
Cam Specs:
- Cam Type: Roller
- .533 Intake / .544 Exhaust Lift
- 215 Intake / 220 Exhaust Duration
- @.050-114 Degree Lobe Separation
Ignition Timing:
- 34 Degrees Total at 3500 RPM
Also Includes:
- Dual Plane, Satin Aluminum Intake Manifold
- Holley Sniper 2 EFI System
- Spark Plugs and Wires
- Distributor
- Valve Covers
- Dual/Rear Sump Oil Pan
Assembled with Complete 4R70W 4WD Ready – Automatic Transmission Package:
- Includes Electronic Transmission Controller
- Transmission Built to 650 HP
- 2200-2600 Stall Torque Converter
- Flex Plate
- Starter
- TPS Breakout Harness Included for Integration with Transmission Controller
- 4 Speed, Overdrive transmission w/Lockup
- Specifically Prepped for Dana 20 Transfer Case (1966-1976). Transfer case is NOT included.
- GEAR RATIOS
- First: 2.84 :1.
- Second: 1.55 :1.
- Third: 1.00 :1.
- Overdrive: 0.70 :1.
- Reverse: 2.32 :1.
Accessory Drive Installed and Included:
- Front Accessory Drive with A/C Compressor, Water Pump, Alternator and Power Steering Pump
Notes:
- The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
- Note that 4R70W transmission may require modifications/replacement of driveshaft, transmission mount, exhaust routing, etc.
- This engine can be used on all vehicles that were manufactured before emissions control regulations were imposed. These vehicles are considered “uncontrolled vehicles.”
- Uncontrolled Vehicles are Defined as:
- 1965 and older U.S. manufactured California Certified vehicles
- 1967 and older U.S. manufactured Federally Certified vehicles
- 1967 and older Foreign manufactured vehicles

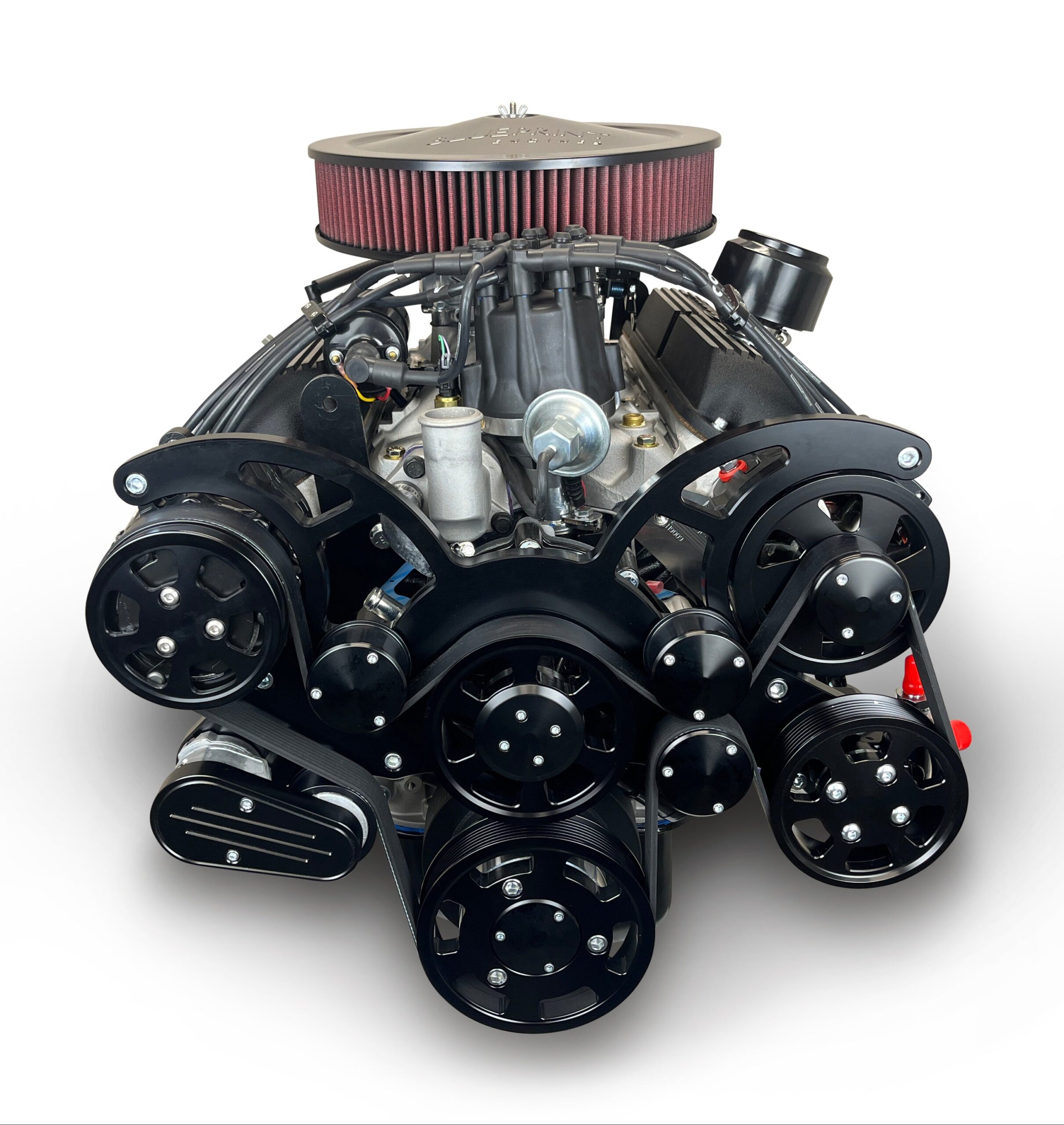

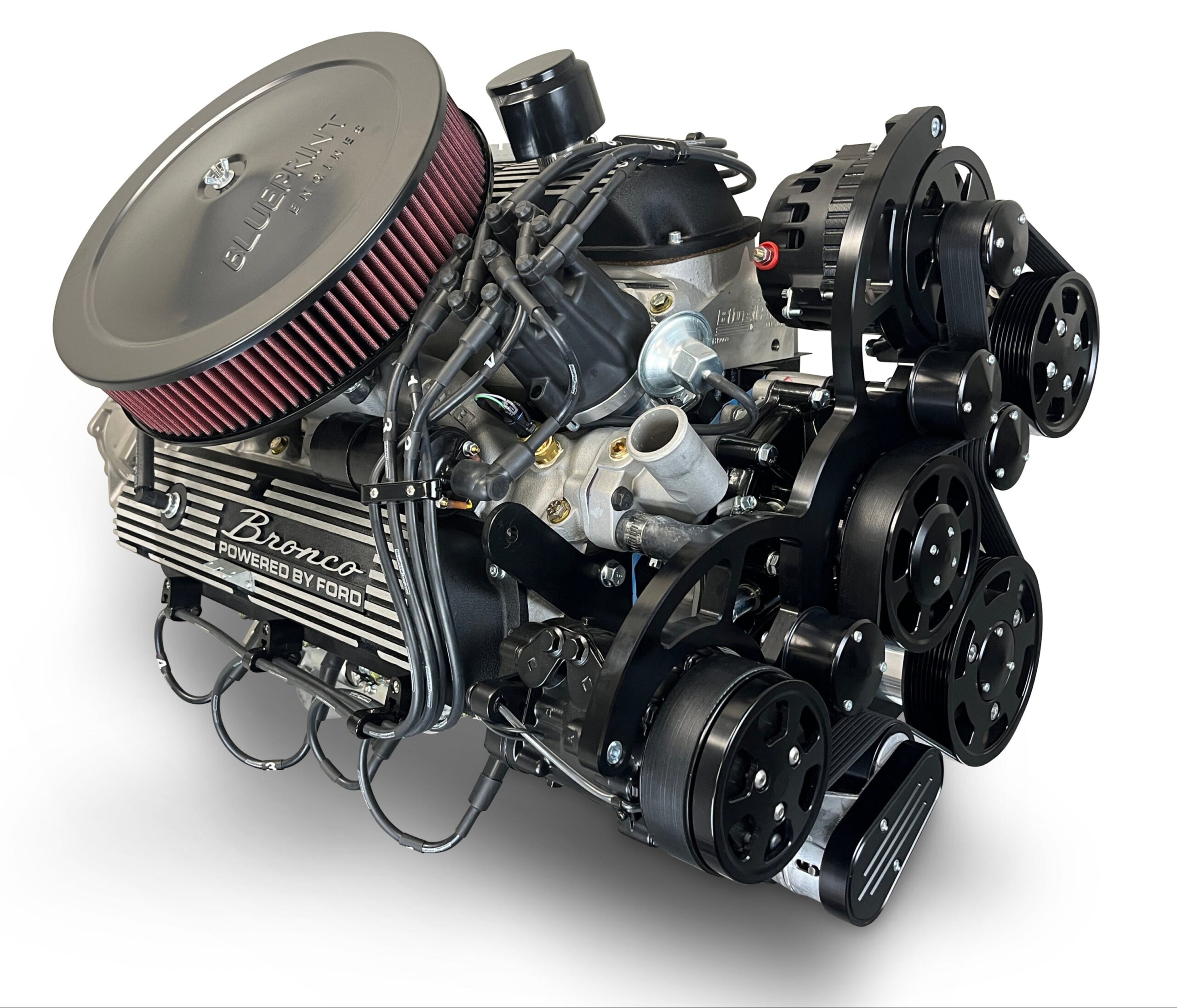

- Package Ships assembled as pictured.
