Description
Description:
- Horsepower & Torque: 370 Horsepower / 350 ft. lbs. Torque
- Compression Ratio: 9.5:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Hypereutectic Pistons
- BluePrint Engines Cast Crank
Block:
- BluePrint Engines High-Strength cast Iron Block
- Increased Deck Thickness & Strength Webbing
- Improved Water Jacket Design
- 1-Piece Rear Main Seal
- Priority Main Oiling
- 4.000″ Bore
- 4-Bolt Main
Rotating Assembly:
- Ford, Machined and Balanced by BluePrint Engines
- 3.000″ Stroke
- OEM Type 5.090” Connecting Rods
- Hypereutectic Pistons
- 50oz External Balance Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads – HP9009
- 60cc Chamber
- 2.02″ Intake / 1.60″ Exhaust Valves
- 190cc Intake / 60cc Exhaust Runners
Cam Specs:
- Hydraulic Roller Cam
- .543 Intake / .554 Exhaust Lift
- 218 Intake / 226 Exhaust Duration
- @.050-112 Degree Lobe Separation
Ignition Timing:
- 34 Degrees Total at 3500 RPM
Also Includes:
- Holley Street Warrior 600cfm Vacuum Secondary Carburetor w/ Electric Choke BPP080457SA
- Front accessory drive with A/C Compressor, Water Pump, Alternator and Power Steering Pump
- Thermostat and Thermostat Housing
- Dual Plane Intake Manifold – BPP302INT
- MSD Pro Billet Distributor – BPP3023BK
- Harmonic Balancer – BPP50
- Ignition Coil – BPP82021BK
- Spark Plugs and Wires
- Fuel Pump – BPP6588
- Painted Oil Pan
- Valve Covers
- Air Cleaner
- Dipstick
Assembled with Complete 4R70W Automatic Transmission Package:
- Includes Electronic Transmission Controller
- Transmission Built to 650 Horsepower
- 2200-2600 Stall Torque Converter
- Flex Plate
- Starter
- 4 Speed, Overdrive Transmission w/ Lockup
- GEAR RATIOS
- First: 2.84 :1.
- Second: 1.55 :1.
- Third: 1.00 :1.
- Overdrive: 0.70 :1.
- Reverse: 2.32 :1.
Notes:
- Note that 4R70W transmission may require modifications/replacement of driveshaft, transmission mount, exhaust routing, etc.
- Not for use in pollution-controlled vehicles.
- The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
- Does not include TPS, as varies with carb or EFI type.

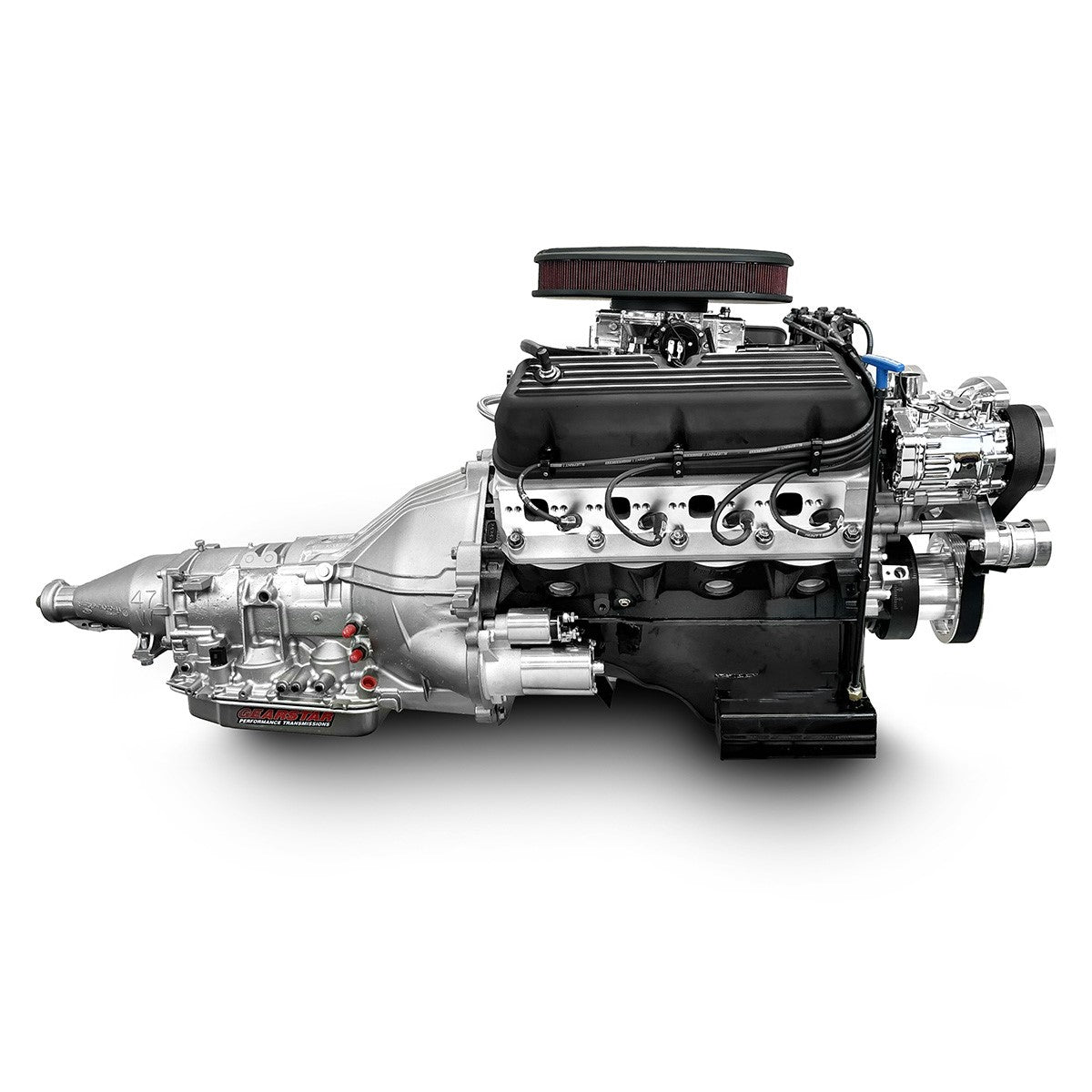

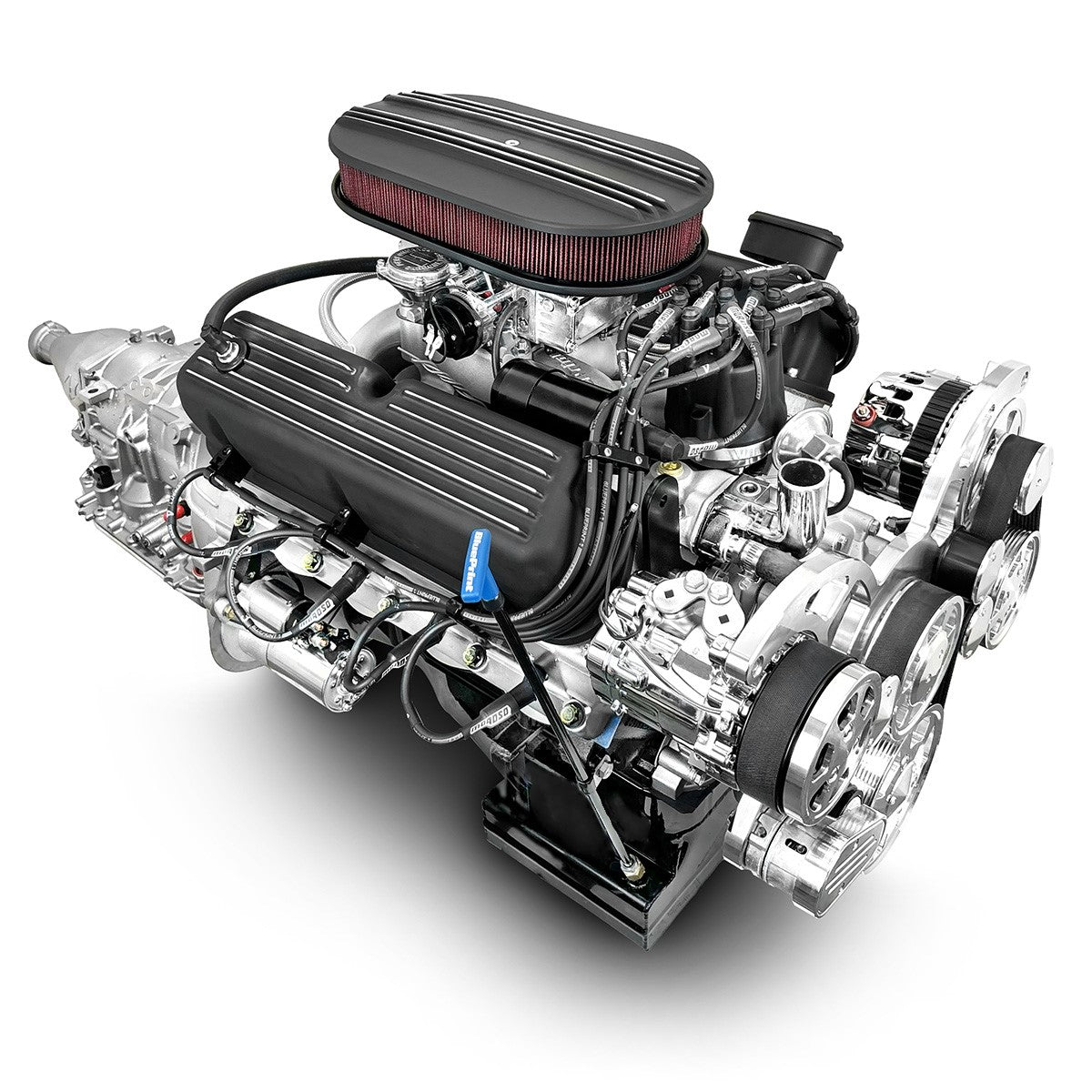

- PACKAGE SHIPS ASSEMBLED AS PICTURED.
- IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE,
- STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
*A bronze distributor gear is NOT recommended on this engine
