Description
Description:
- Horsepower & Torque: 370 Horsepower / 350 ft. lbs. Torque
- Compression Ratio: 9.5:1
- Aluminum Heads
- Hydraulic Roller Cam
- Cast Crank
- Hypereutectic Pistons
Block:
- BluePrint Engines High-Strength Cast Iron Block
- Increased Deck Thickness and Strength Webbing
- Priority Main Oiling
- 4000″ Bore
- 4-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
Rotating Assembly:
- Ford, Machined and Balanced by BluePrint Engines
- 3.000″ Stroke
- OEM Type 5.090” Connecting Rods
- Hypereutectic Pistons
- 50oz External Balance
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads – HP9009
- 60cc Chamber
- 2.02″ Intake / 1.60″ Exhaust Valves
- 190cc Intake / 60cc Exhaust Runners
Cam Specs:
- Cam Type: Roller
- .543 Intake / .554 Exhaust Lift
- 218 Intake / 226 Exhaust Duration
- @.050-112 Degree Lobe Separation
Ignition Timing:
- 34 Degrees Total at 3500 RPM
Also Includes:
- Holley Sniper EFI System
- EFI Fuel Pump Kit
- Intake Manifold
- Water Pump
- Spark Plugs and Wires
- Valve Covers
- Distributor
- Harmonic Balancer
- Painted Oil Pan
- Thermostat and Thermostat Housing
Assembled with Complete TKX Transmission Package:
- Mcleod Super Street Pro Single Disk Clutch
- Hydraulic Throw Out Bearing
- Aluminum Bell Housing
- Flywheel
- Engine Guard
- Starter
- First Gear Ratio: 2.87:1
- Second Gear Ratio: 1.89:1
- Third Gear Ratio: 1.28:1
- Fourth Gear Ratio: 1.00:1
- Fifth Gear Ratio: 0.81:1
Accessory Drive Installed and Included:

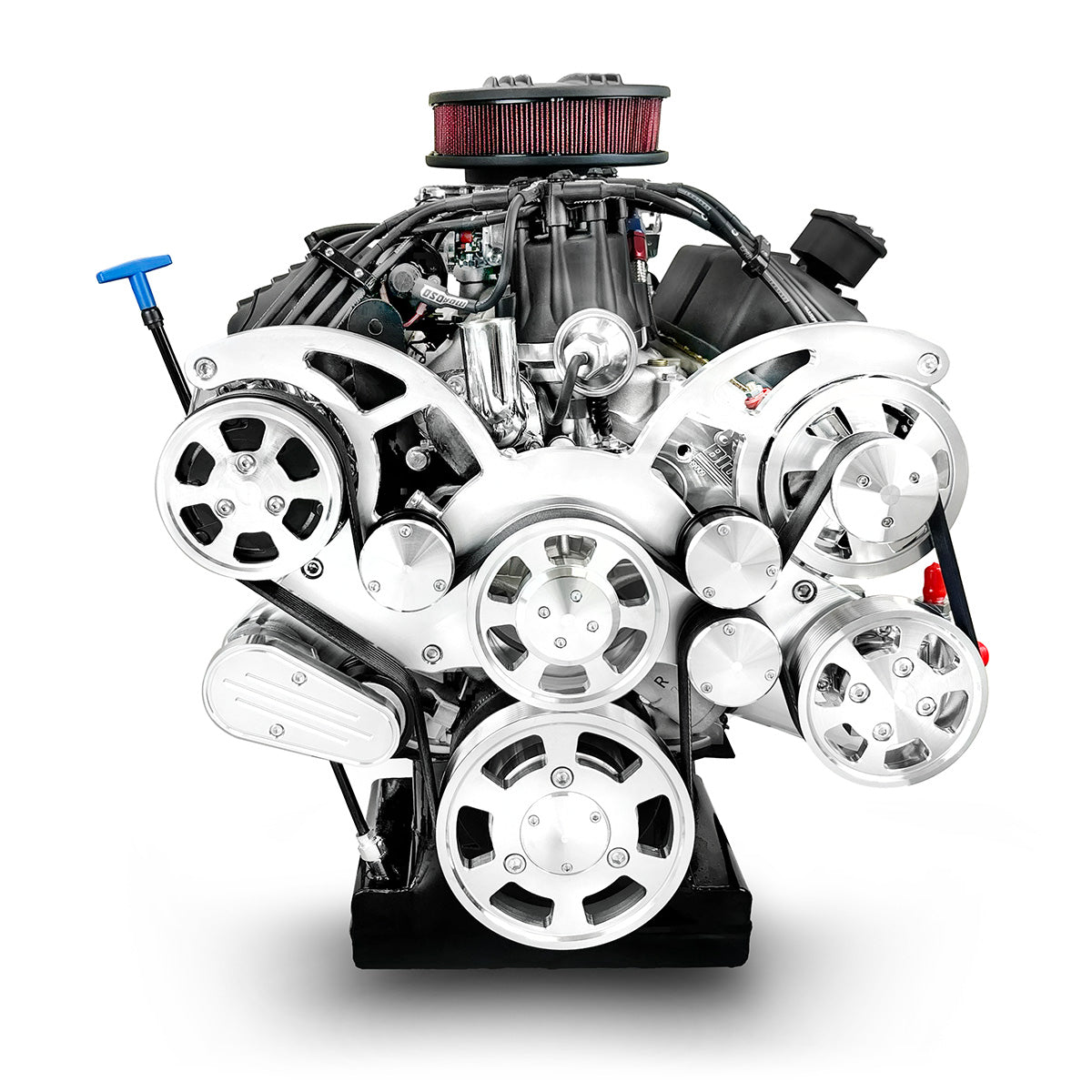

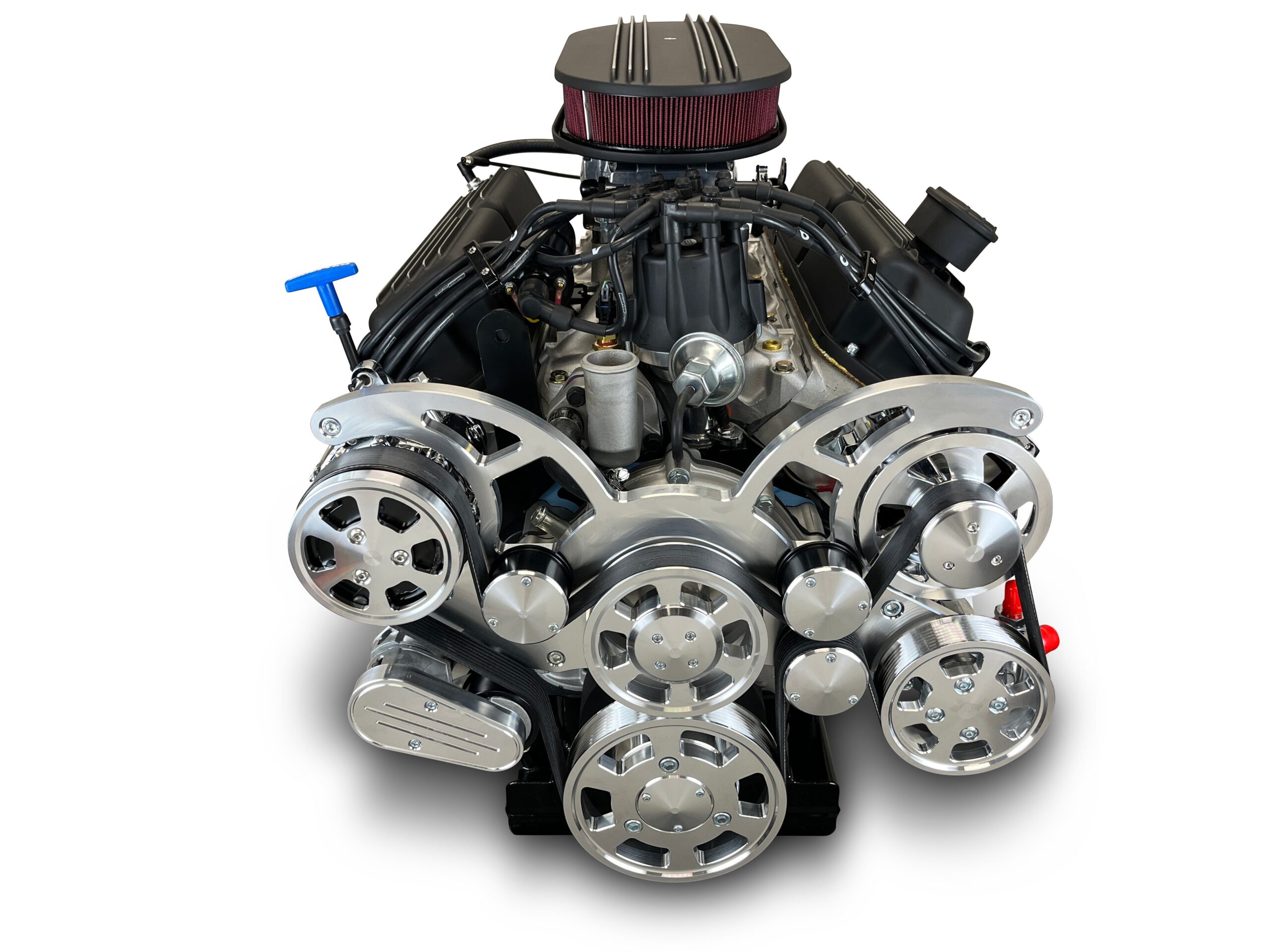

- Front Accessory Drive with A/C Compressor, Alternator, Water Pump and Power Steering Pump
Notes:
- Not for use in pollution-controlled vehicles
- The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.

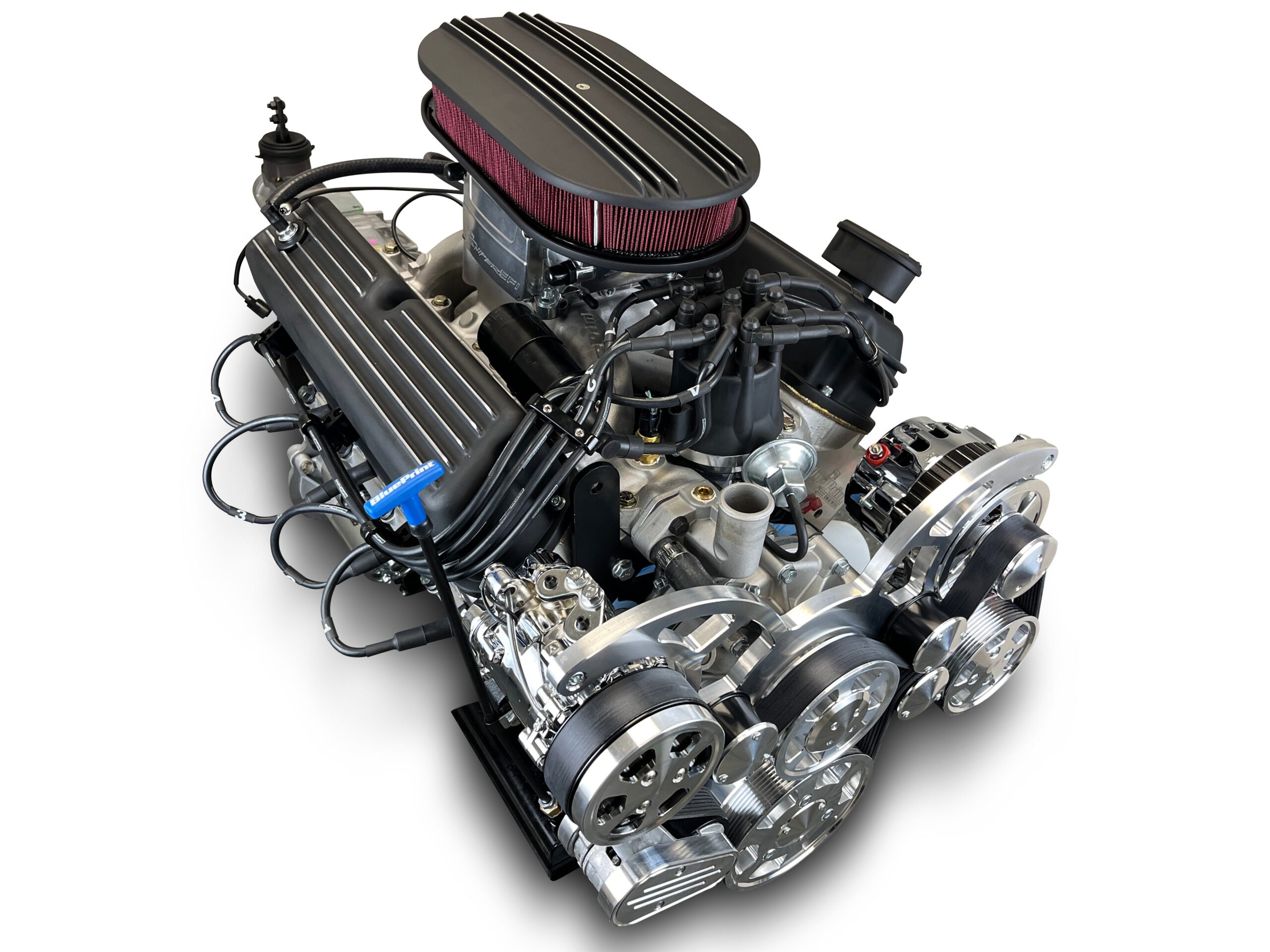

- PACKAGE SHIPS ASSEMBLED AS PICTURED.
- IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
*A bronze distributor gear is NOT recommended on this engine
