Description
Description:

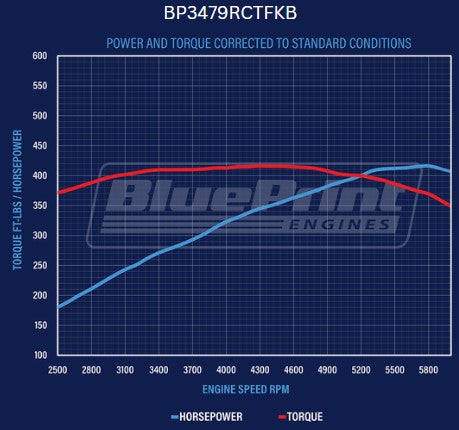

- Horsepower & Torque: 415 Horsepower / 415 FT. LBS. Torque
- Compression Ratio: 10.0:1
- Aluminum Heads
- Cast Crankshaft
- Hydraulic Roller Cam
Block:
- BluePrint Engines High Strength Cast Iron Block
- Increased Deck Thickness and Strength Webbing
- Priority Main Oiling
- 4.000″ Bore
- 4-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
Rotating Assembly:
- Cast Crankshaft
- 3.400″ Stroke
- Forged 5.400″ Connecting Rods
- Forged Pistons
- 28oz Externally Balanced Front and Rear
Cylinder Heads:
- BluePrint aluminum cylinder heads – HP9009
- 60cc Chamber
- 2.02″ Intake / 1.60″ Exhaust Valves
- 190cc Intake / 60cc Exhaust Runners
Cam Specs:
- Hydraulic Cam
- .543 Intake / .554 Exhaust Lift
- 218 Intake / 226 Exhaust Duration
- @.050-112 Degree Lobe Separation
Ignition Timing:
- 10-16 Degrees Initial, 32-34 Total
Also Includes:
- Dual/Rear Sump Oil Pan
- Intake Manifold
- Air Cleaner (NEW 14″ BluePrint Air Cleaner)
- Holley Sniper 2 EFI System
- Distributor
- Harmonic Balancer
- Valve Covers
- Timing Cover
- Front Accessory Drive with A/C Compressor, Water Pump, Power Steering Pump, and Alternator
- Thermostat and Thermostat Housing
Notes:
- Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.
- The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment. Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
