Description
Overview:

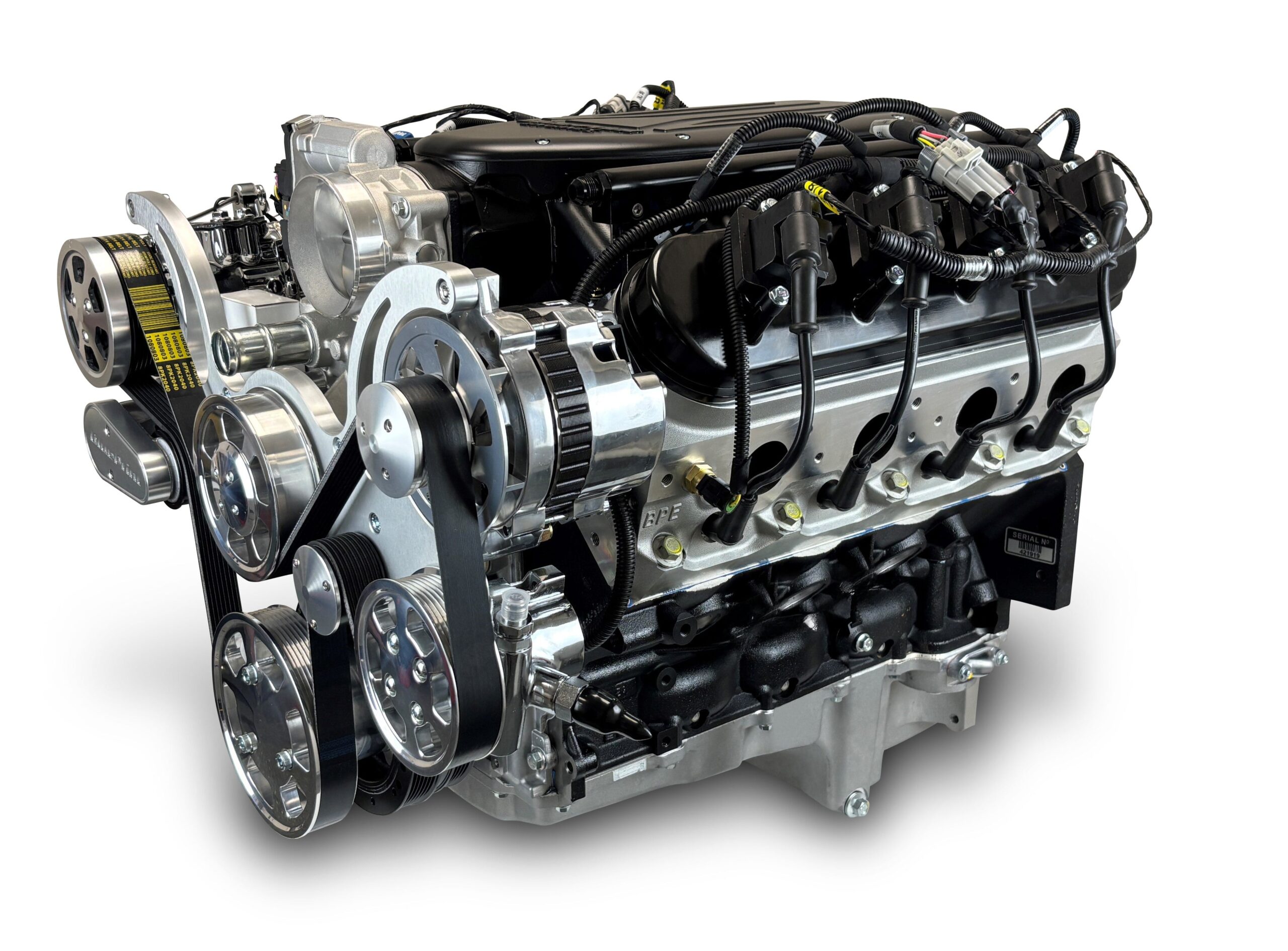

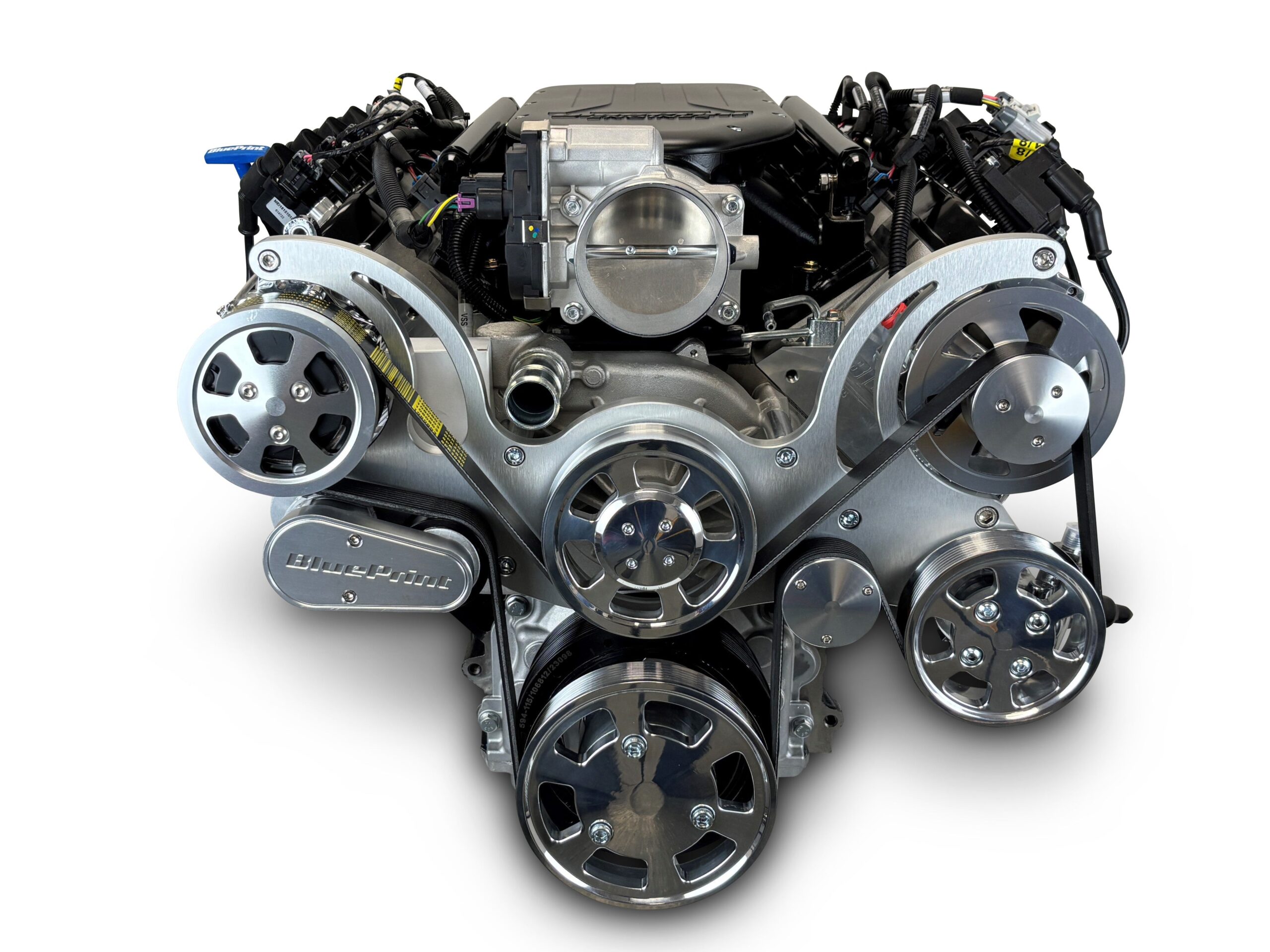

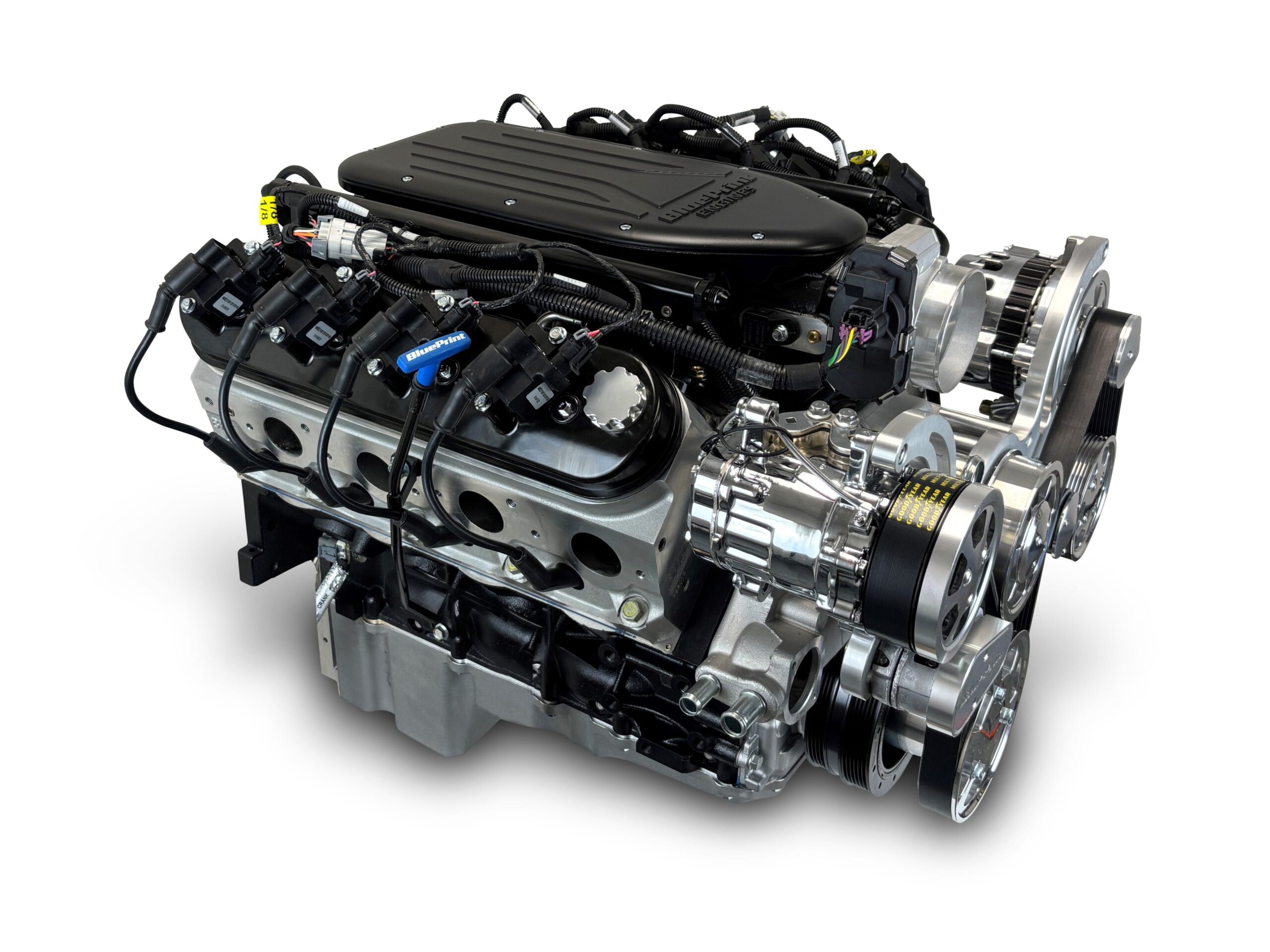

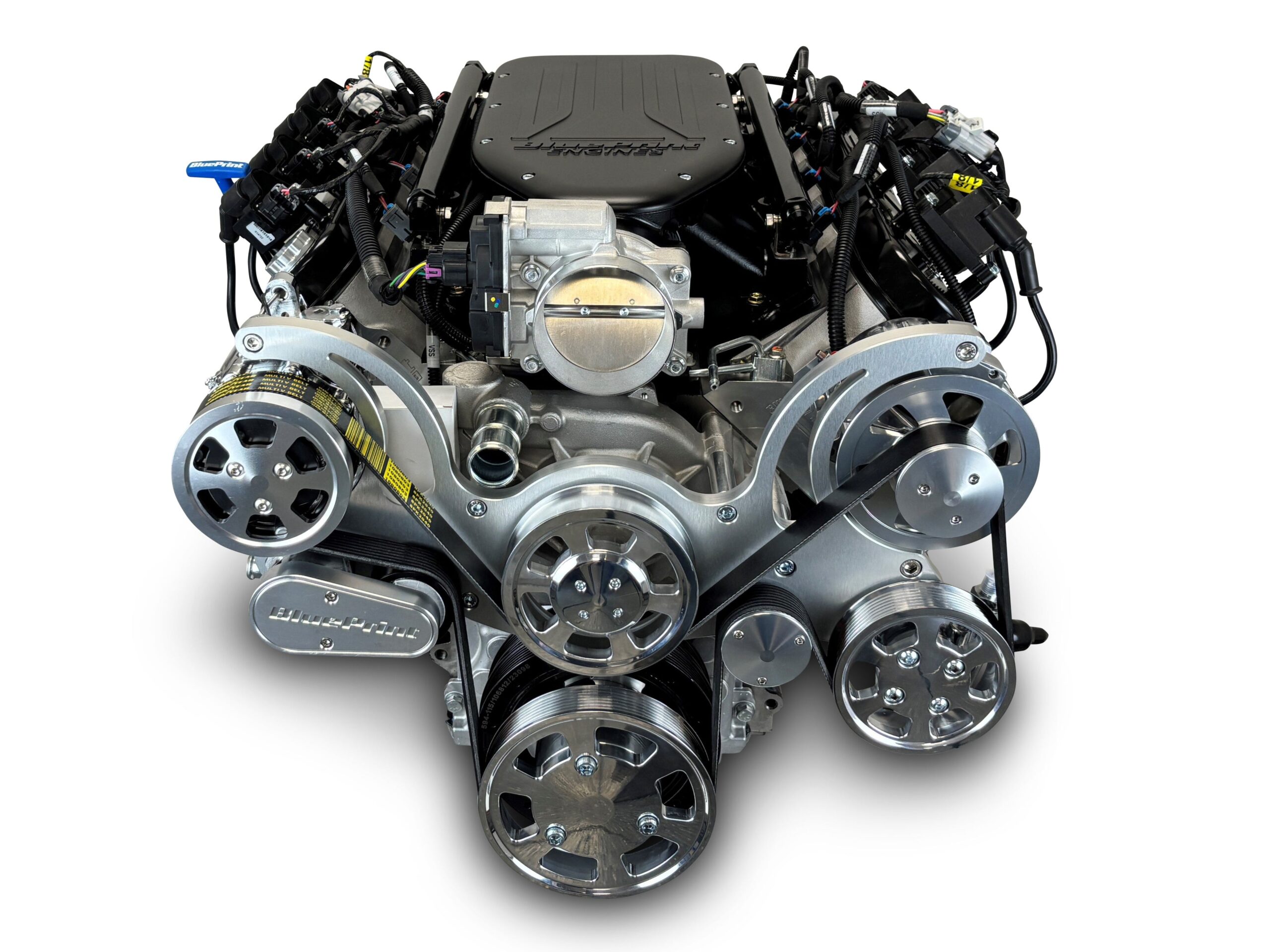

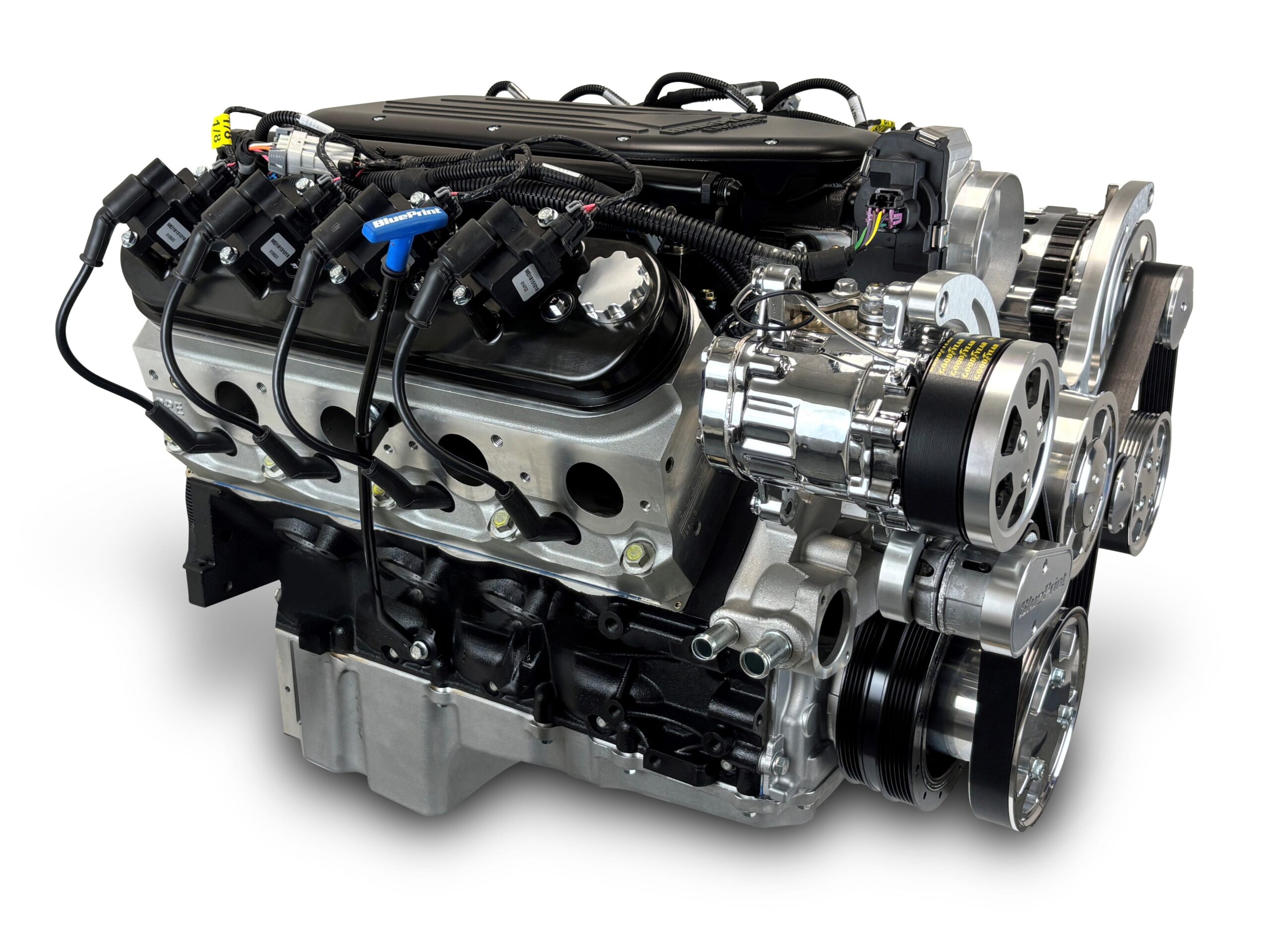

The BluePrint ever popular GM LS-Compatible 376 c.i. performance crate engine delivers a dyno-tested 510 horsepower and 440 ft. lbs. of torque, right out of the box. This engine comes equipped with BluePrint’s fully calibrated multi-port fuel injection system—engineered for precision and reliability. The included ECU and complete wiring harness make installation straightforward and stress-free and has been rigorously tested over the course of a year in both on-road and off-road environments, under a wide range of temperatures and conditions. The result? A finely tuned, fully optimized calibration that maximizes the power and drivability of this 376 c.i. powerhouse—far surpassing the performance of typical self-learn EFI systems. The BluePrint ECU manages both ignition timing and fuel delivery and supports seamless self-learn functionality as you add bolt-on upgrades like headers, camshafts, or performance exhaust systems. With just three simple connections—Main Battery, switched 12V Ignition, and Fuel Pump—you’ll be up and running in no time.
Description:
- Horsepower & Torque: 510 Horsepower / 440 FT LBS. Torque
- Compression Ratio: 10.7:1
- BluePrint Engines LS3 Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Hypereutectic Pistons
- Nodular Iron Crankshaft
Block:
- BluePrint Engines High Strength Cast Iron (LSX Style) Block
- Increased Deck Thickness and Strength Webbing
- Utilizes OEM LS3 Front and Rear Covers
- Improved Water Jacket Design
- Extended Cylinder Skirt
- 1-Piece Rear Main Seal
- Priority Main Oiling
- 4.0662″ Bore
- 6-Bolt Main
Rotating Assembly:
- Nodular Iron Crankshaft
- 3.622″ Stroke
- 6.098″ Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint LS3 Aluminum Cylinder Heads – PS8015
- 69cc Chamber
- 2.165″ Intake / 1.590″ Exhaust Valves
- 259cc Intake / 102cc Exhaust Runners
Cam Specs:
- Hydraulic Roller Cam
- .612 Intake / .585 Exhaust Lift
- 225 Intake / 238 Exhaust duration
- @.050-113 Degree Lobe Separation
Ignition Timing:
- Ignition Timing and Spark Advance are Controlled by BluePrint Engine Calibrated ECU
- Transmission Controller Required (ECU Does Not Offer Transmission Control)
Also Includes:
- Front Accessory Drive with Water Pump, Alternator, Power Steering Pump, and A/C Compressor
- Drive by Wire Throttle Body – BPP12191019
- LS3 Cast Aluminum Intake Manifold
- LS Swap Oil Pan – BPP81073
- Water Pump – BPPLS126WP
- Engine Harness and ECU Kit
- Injectors and Fuel Rail Kit
- Spark Plugs & Wiring
- Harmonic Balancer
- Timing Cover
- Valve Covers
- Coil Packs
- Gas Pedal
Notes:
- This engine requires a non-weighted flex plate/flywheel.
- Recommended fuel: 91 Octane.
- BluePrint Engines recommends a 2200+ RPM stall converter.
- Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars.
- Not for use in pollution-controlled vehicles or in dry sump applications.
- The Included BluePrint Engines LS controller package contains a fully tested, calibrated, locked ECU, optimized for this specific engine. This package has undergone extensive testing for performance, reliability and the safety of you and your engine.
