Description
Overview:

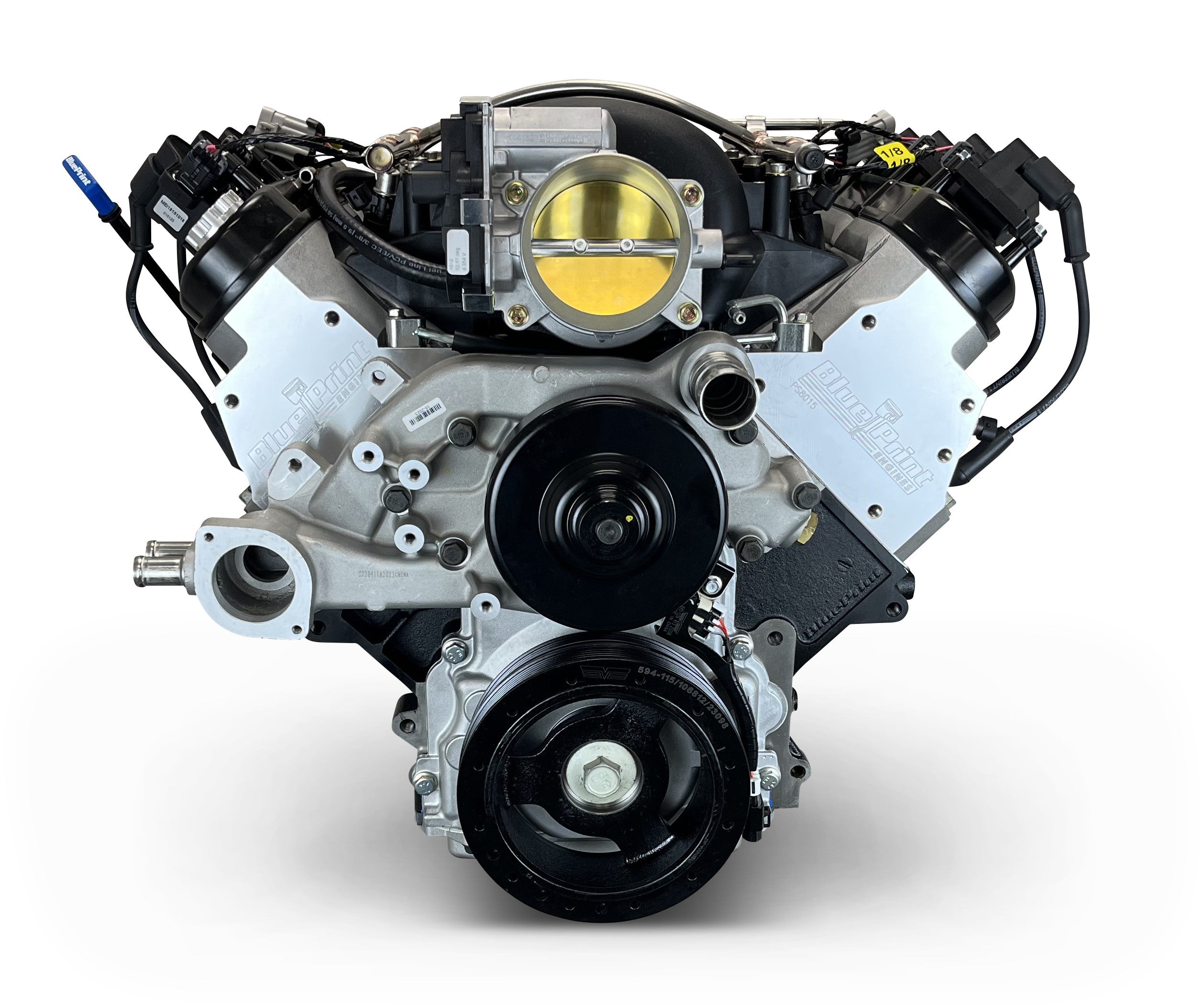

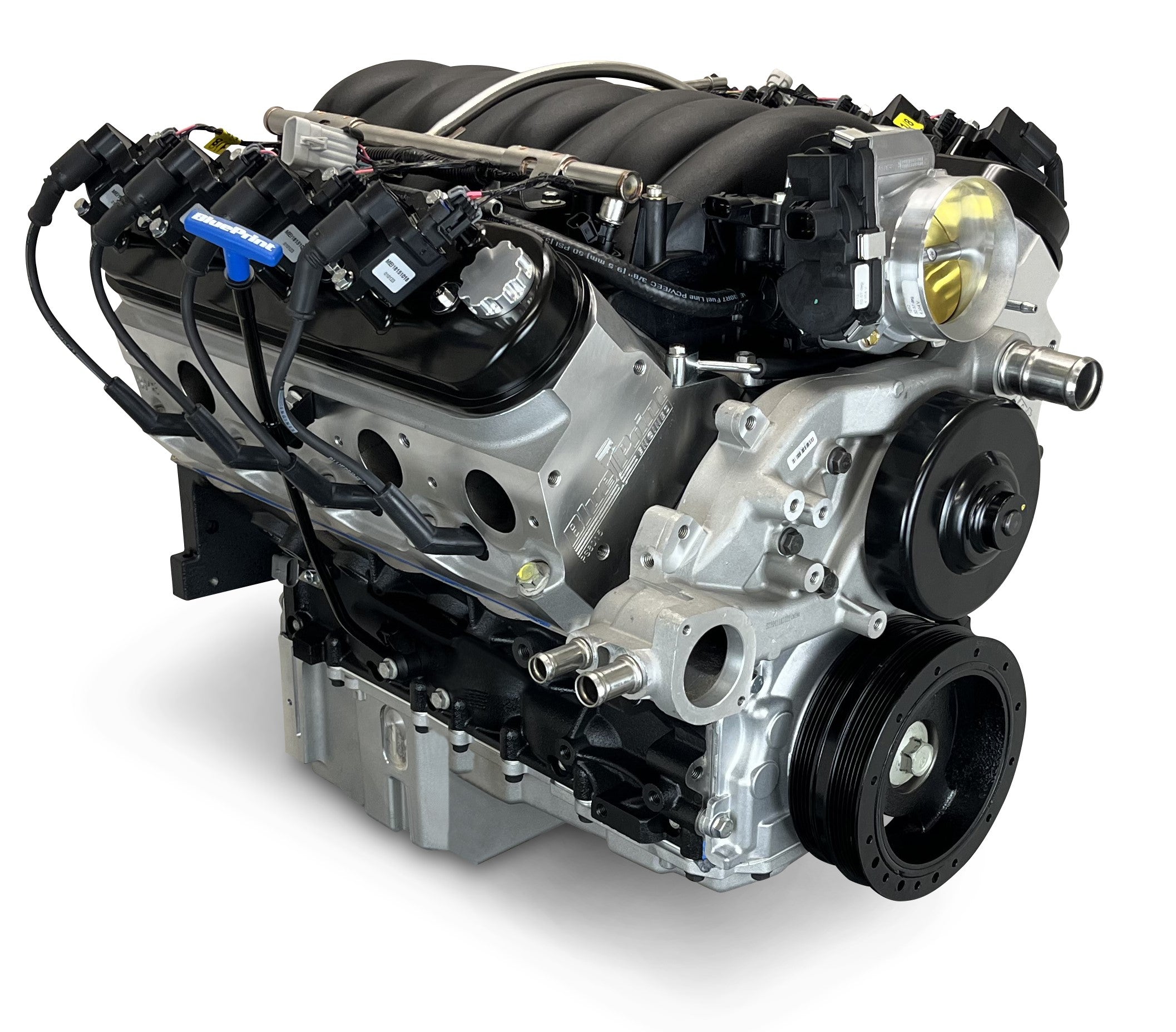

The LS-compatible platform is the king of street machines—and this BluePrint Engines 376 C.I. Pro Series monster proves why. Unleash raw, LS-powered fury with a street-scorching 530 horsepower and 495 ft-lbs of torque. This base dressed beast packs a 10.7:1 compression ratio, BluePrint aluminum heads, a hydraulic roller cam, and hypereutectic pistons, and nodular iron crankshaft, all locked into a high-strength LSX-style cast iron block.
Description:
- Horsepower & Torque: 530 Horsepower / 495 FT LBS
- Compression Ratio: 10.7:1
- BluePrint Engines LS3 Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Hypereutectic Pistons
- Nodular Iron Crankshaft
Block:
- BluePrint Engines High Strength Cast Iron (LSX Style) Block
- Increased Deck Thickness and Strength Webbing
- Extended Cylinder Skirt
- Priority Main Oiling
- 4.0662″ Bore
- 6-Bolt Main
- 1-Piece Rear Main Seal
- Improved Water Jacket Design
- Utilizes OEM LS3 Front and Rear Covers.
Rotating Assembly:
- Nodular Iron Crankshaft
- 3.622″ Stroke
- 6.125″ Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads – PS8015
- 69cc Chamber
- 2.165″ Intake / 1.590″ Exhaust Valves
- 259cc Intake / 102cc Exhaust Runners
Cam Specs:
- Cam Type: Hydraulic Roller Cam
- .612 Intake / .585 Exhaust Lift
- 225 Intake / 238 Exhaust Duration
- @.050-113 Degree Lobe Separation
Also Includes:
- This engine Does NOT come with a Fuel Injection ECU and Wiring Harness
- LS Swap Oil Pan – Windage Tray – Pick Up Screen
- BluePrint Engines Fuel Injectors and Rail
- DBW Throttle Body – BPP12191019
- Water Pump – BPPLS126WP
- GM Plastic Intake Manifold
- Spark Plugs & Wires
- Harmonic Balancer
- Coil Packs
Notes:
- Engine is not shipped with Engine controller kit. Must purchase separately for your application. Controller kit can be found by part number BPPLS530
- BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the above ECU / tuning.
