Description

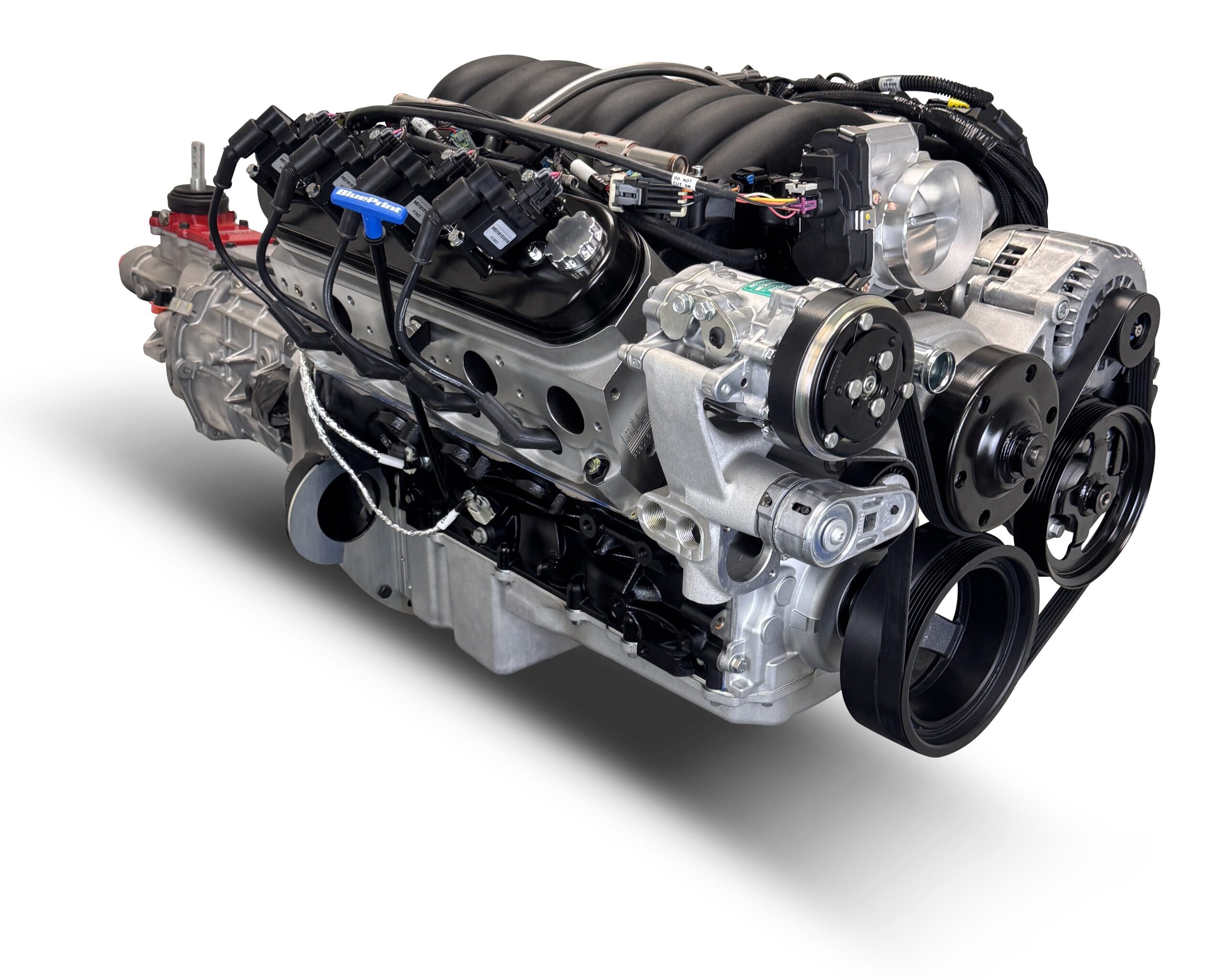

Description:
- Horsepower & Torque: 605 Horsepower / 565 ft. lbs. Torque
- Compression Ratio: 11:1
- BluePrint Engines LS3 Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Forged Crank
- BluePrint Engines Forged Pistons
Block:
- BluePrint Engines High Strength Cast Iron (LSX Style) Block
- Increased Deck Thickness and Strength Webbing
- Utilizes OEM LS3 Front and Rear Covers
- Improved Water Jacket Design
- Extended Cylinder Skirt
- 1-Piece Rear Main Seal
- Priority Main Oiling
- 4.0665″ Bore
- 6-Bolt Main
Rotating Assembly:
- Forged Crankshaft
- 4.125″ Stroke
- Forged 6.125″ Connecting Rods
- Forged Pistons
- Internally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads – PS8015
- 70cc Chamber
- 2.165″ Intake – 1.600″ Exhaust Valves
- 259cc Intake – 102cc Exhaust Runners
Cam Specs:
- Hydraulic Roller Cam
- .624 Intake – .624 Exhaust Lift
- 239 Intake – 255 Exhaust Duration
- @.050-114 Degree Lobe Separation
Ignition Timing:
- ECM Supplied with Calibration
Holley Terminator X Max Specific Features and Benefits:
- Real Time Fuel Map Learning Simplifies Tuning by Dynamically Adjusting the Base Fuel Rate
- On Board Bosch LSU 4.9 Wideband Control, Enabling Accurate AFR Readings and Closed Loop Tuning
- Eight High Impedance Injector Drivers, Ideal for Stock LS Injectors and Holley EFI Injectors
- Integrated 1-Bar MAP Sensor for Naturally Aspirated or Nitrous Setups, with Harness Support for External Higher Bar Sensors if needed
- 4 Configurable Inputs (12V, Ground, 5V, Frequency) and 2 Outputs (Ground, PWM) – Ideal for Electric Fans, Boost Control Solenoids, Nitrous Control and more
- Free PC Tuning Software via USB/CAN Interface for Full Laptop Control and Advance Setup
- Integrated 3.5″ Touchscreen Handheld with Setup Wizard, Internal Data Logging, and Real Time Gauge Displays
- Terminator X Max ECU will Include a Base Timing Map Pre-Configured for this engine
Also Includes:

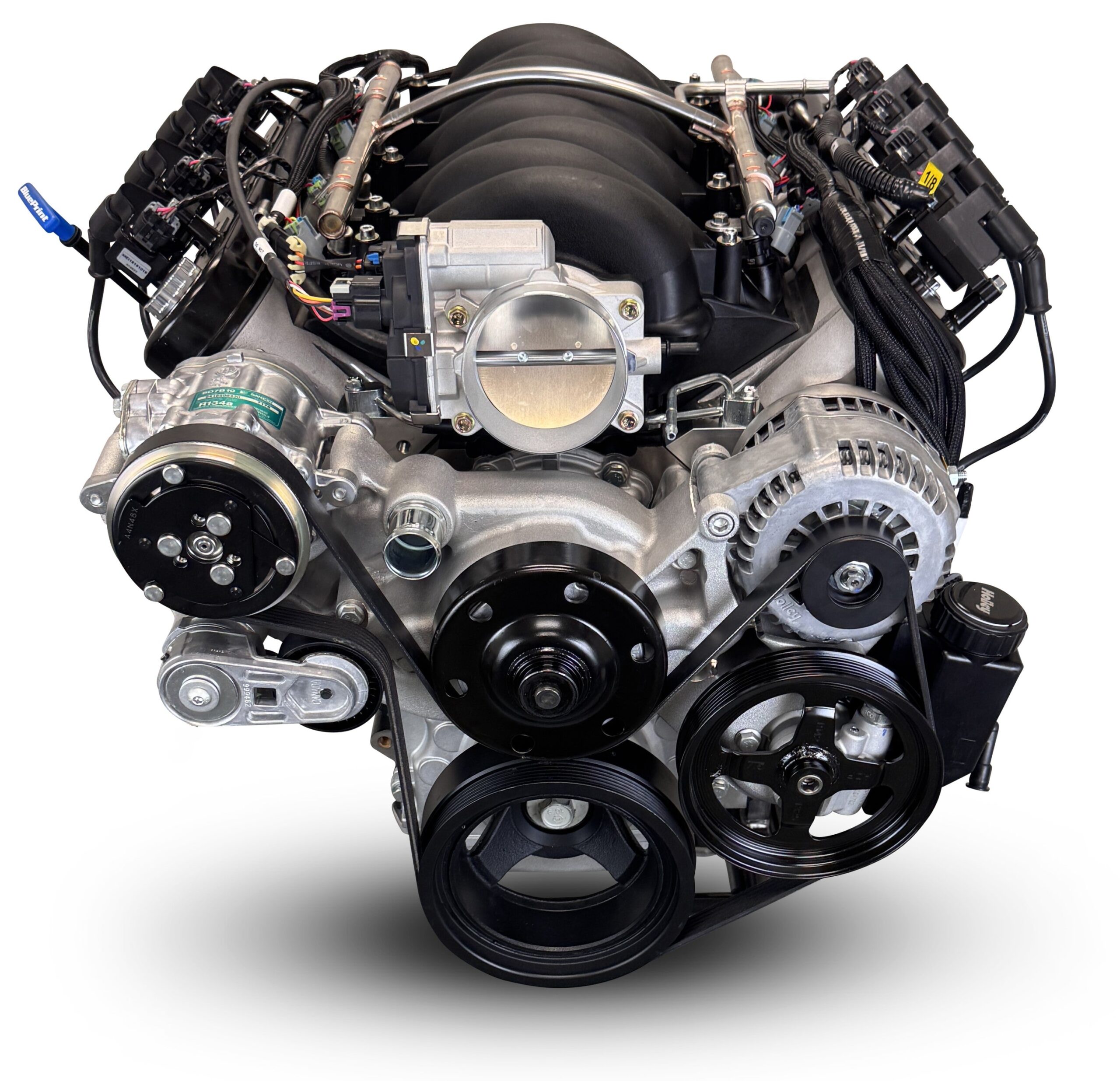

- Front Accessory Drive with LT1 Style 150-amp Alternator, LT1 Style Water Pump, Type II Power Steering Pump with Baffled Edges, and Compact Style A/C Compressor
- LS Swap Oil Pan – Windage Tray – Pick Up Screen
- BluePrint Engines Fuel Injectors and Rail
- DBW Throttle Body – BPP12191019
- Throttle Pedal, and Sensors
- GM Plastic Intake Manifold
- Spark Plugs & Wires
- Harmonic Balancer
- Coil Packs

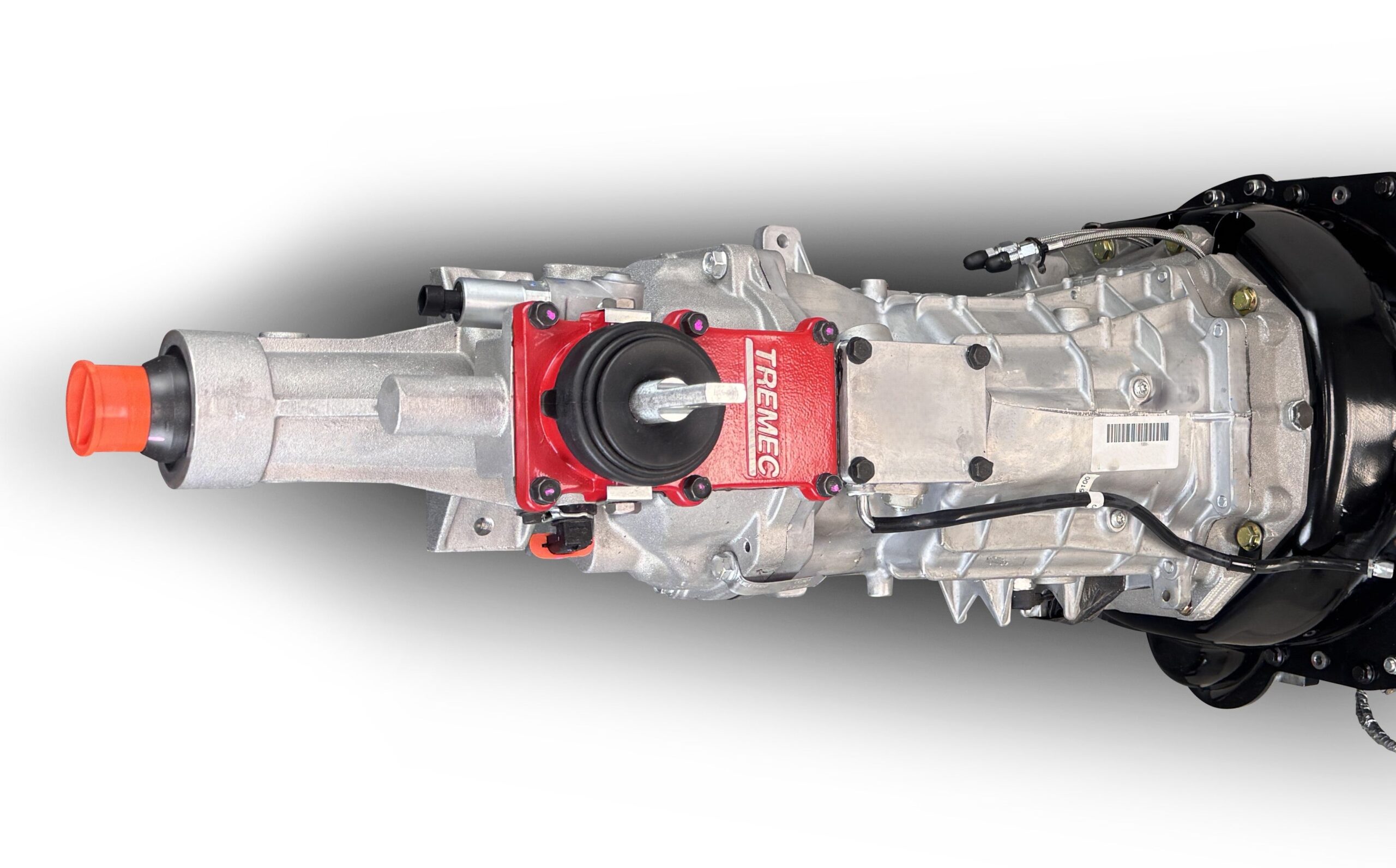

Assembled with Complete T56 Six Speed Transmission Package:
Includes the following:
- McLeod Super Steel Pro Dual Disk Clutch
- Steel Bell Housing
- Billet Flywheel
- Engine Guard
- Starter
- First Gear Ration: 2.66:1
- Second Gear Ratio: 1.78:1
- Third Gear Ration: 1.30:1
- Fourth Gear Ration: 1.00:1
- Fifth Gear Ration: 0.80:1
- Sixth Gear Ration: 0.63:1
Notes:
- Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars
Not for use in pollution-controlled vehicles or in dry sump applications. - BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the provided ECU / tuning.
- Engine/Trans Package Ships assembled
