Description
Description:

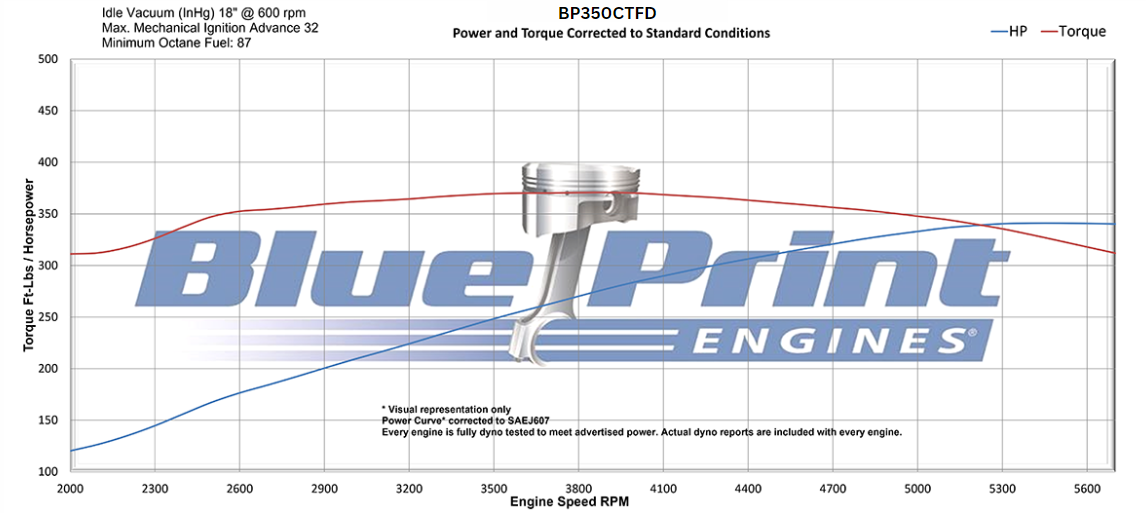

- Horsepower & Torque: 341 Horsepower / 371 ft. lbs. Torque
- Compression Ratio: 9.2:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Cast Crankshaft
- BluePrint Engines Hypereutectic Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.000″ Bore
Rotating Assembly:
- Cast Crankshaft
- 3.480″ Stroke
- Forged 5.700″ Connecting Rods
- Hypereutectic Pistons
- Internally Balanced Front – Externally Balanced Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads – H8002K
- 64cc Chamber
- 2.02″ Intake / 1.60″ Exhaust Valves
- 195cc Intake / 75cc Exhaust Runners
Cam Specs:
- Hydraulic Roller
- .477 Intake / .471 Exhaust Lift
- 202 Intake / 212 Exhaust Duration
- @ .050-115 Degree Lobe Separation
Ignition Timing:
- 32 Degrees Total at 3500 RPM
Also Includes:
- Holley Sniper II EFI – BPP550-510-3XX
- Standard Rotation Long Water Pump
- Thermostat and Thermostat Housing
- Aluminum Intake – BPP350VINT
- HEI Distributor – BPP350RBK
- Valve Covers – BPP9518
- Spark Plugs and Wires
- Harmonic Balancer
- Rear Sump Oil Pan
- Timing Cover
- Dipstick
Notes:
- This engine is an excellent cruiser and daily driver engine. This engine makes up to 18 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
- The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
