Description
Engine Designed with small diameter harmonic balancer, small cap Distributor, and drop base air cleaner, for vehicles with low firewall or hood clearance. such as Corvette, Tri Five Chevy, Camaro Etc.
Does NOT include Fuel pump or lines. Click here for EFI pump options
Description:

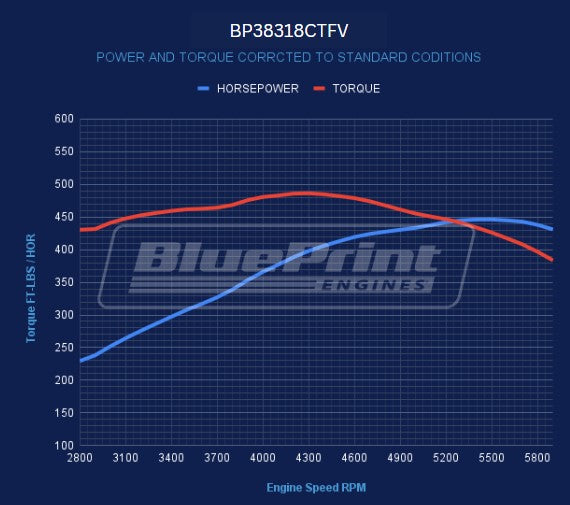

- Horsepower and Torque: 436 Horsepower / 443 ft. lbs. Torque
- Compression Ratio: 10.0:1
- BluePrint Engines Aluminum Heads
- BluePrint Engines Hydraulic Roller Cam
- BluePrint Engines Cast Crankshaft
- BluePrint Engines Hypereutectic Pistons
Block:
- BluePrint Engines High Strength Cast Iron Block
- Manufactured and Machined in the USA!
- Drilled and Tapped for Clutch Linkage
- Mech Fuel Pump Provision: Yes
- Passenger Side Dipstick
- 1-Piece Rear Main Seal
- 4-Bolt Main
- 4.000″ Bore
Rotating Assembly:
- Cast Crankshaft
- 3.750″ Stroke
- OEM Type 5.700″ Connecting Rods w/ 150,000 PSI Bolts
- Hypereutectic Pistons
- Externally Balanced Front and Rear
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads – H8002K
- 64cc Chamber
- 2.02″ Intake /1.60″ Exhaust Valves
- 195cc Intake / 75cc Exhaust Runners
Cam Specs:
- Hydraulic Roller
- .544 Intake / .555 Exhaust Lift
- 230 Intake / 236 Exhaust Duration
- @ .050-110 Degree Lobe Separation
Ignition Timing:
- 34 Degrees Total at 3500 RPM
Also Includes:
- Under Header Spark Plug Wires (Perfect for Rams Horn exhaust manifolds)
- BluePrint Tach Drive Pro Billet Ready Run Distributor – BPP3503TDBK
- Holley Sniper 2 EFI System – BPP550-510-3XX
- Aluminum Intake Manifold – BPP350VINT
- Premium Vintage Valve covers
- Premium Vintage Air Cleaner
- 6.75-inch Harmonic Balancer
- Timing Cover
- Spark Plugs
- Oil Pan
Notes:
- This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
- Not for use in pollution-controlled vehicles.
- For C2 Corvette, modification, or replacement of factory hood and/or motor mounts will be required.
- Air cleaner has a maximum height of 11.5 inches when measured from block end rail (Horizontal sealing surface under the intake manifold.)
- The Aftermarket intake manifold installed on this engine may not be compatible with OEM accessory brackets that use intake mounted bosses.
- The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
