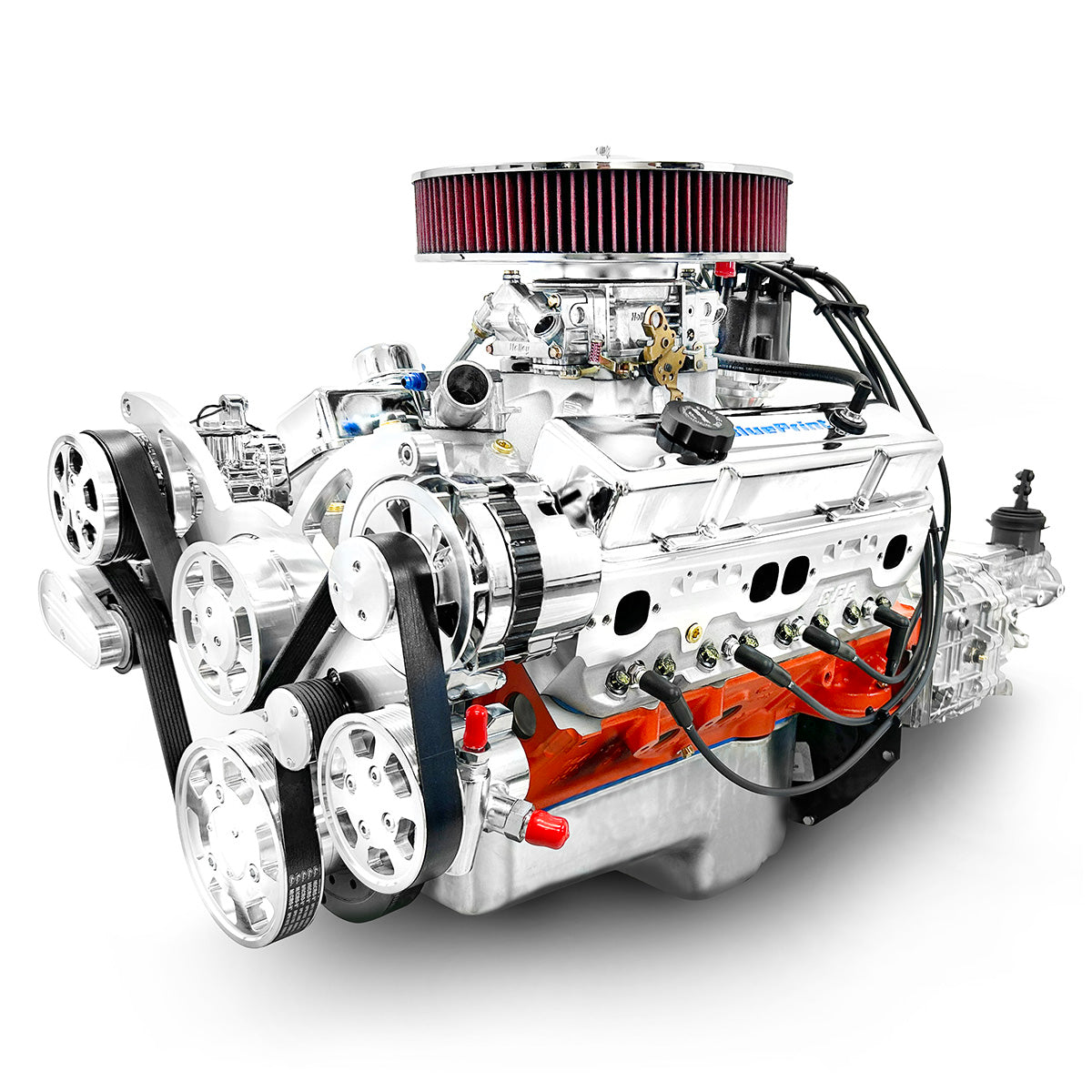

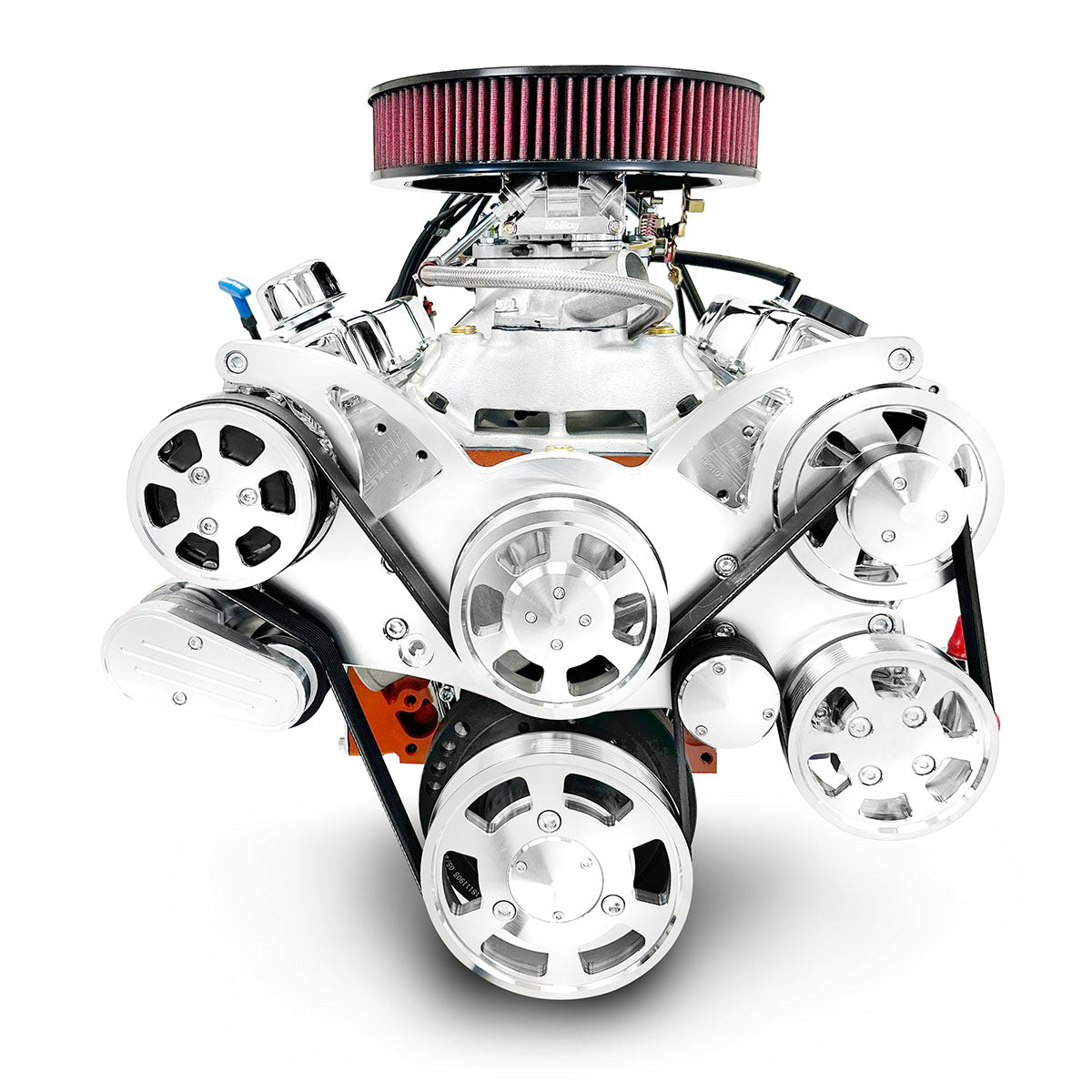

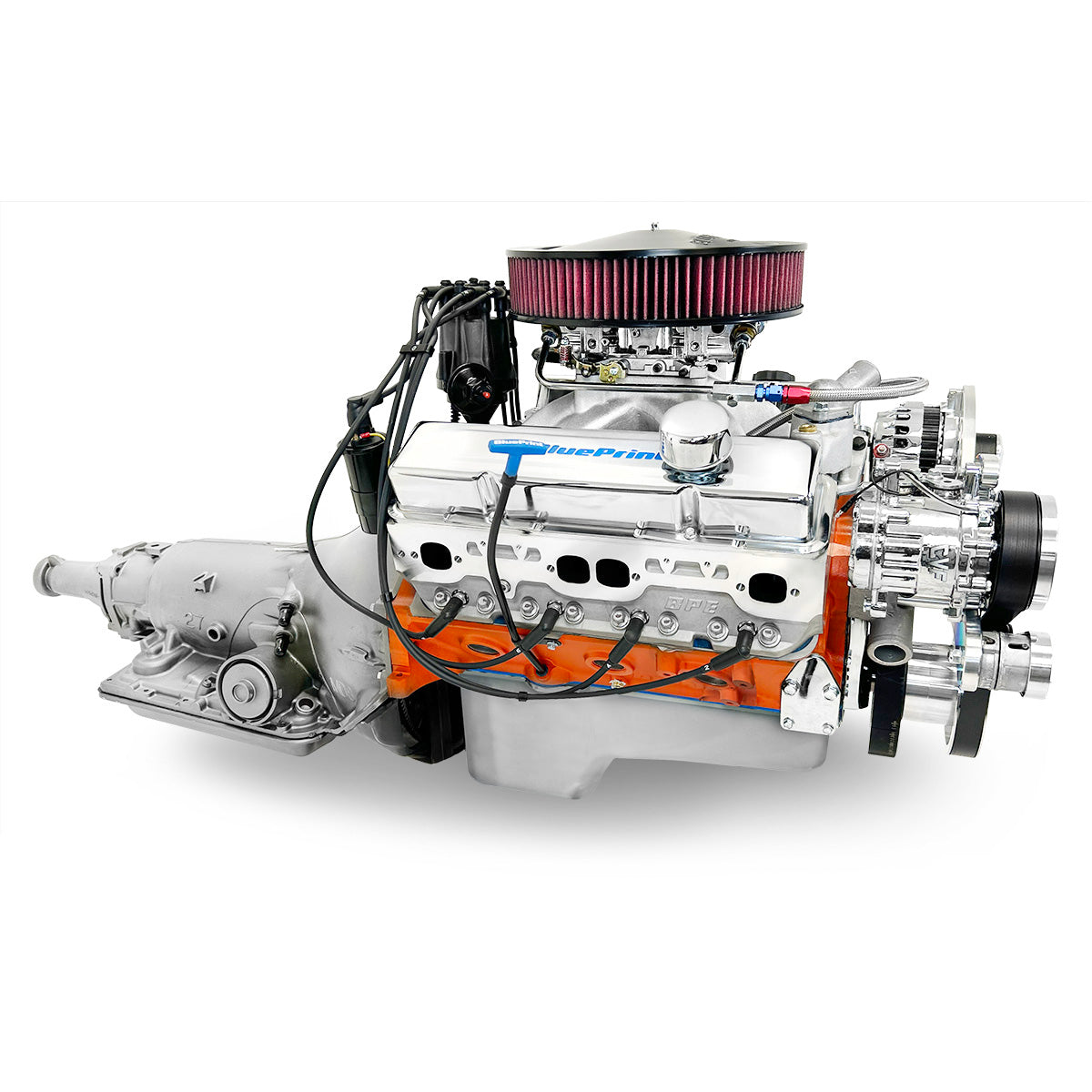

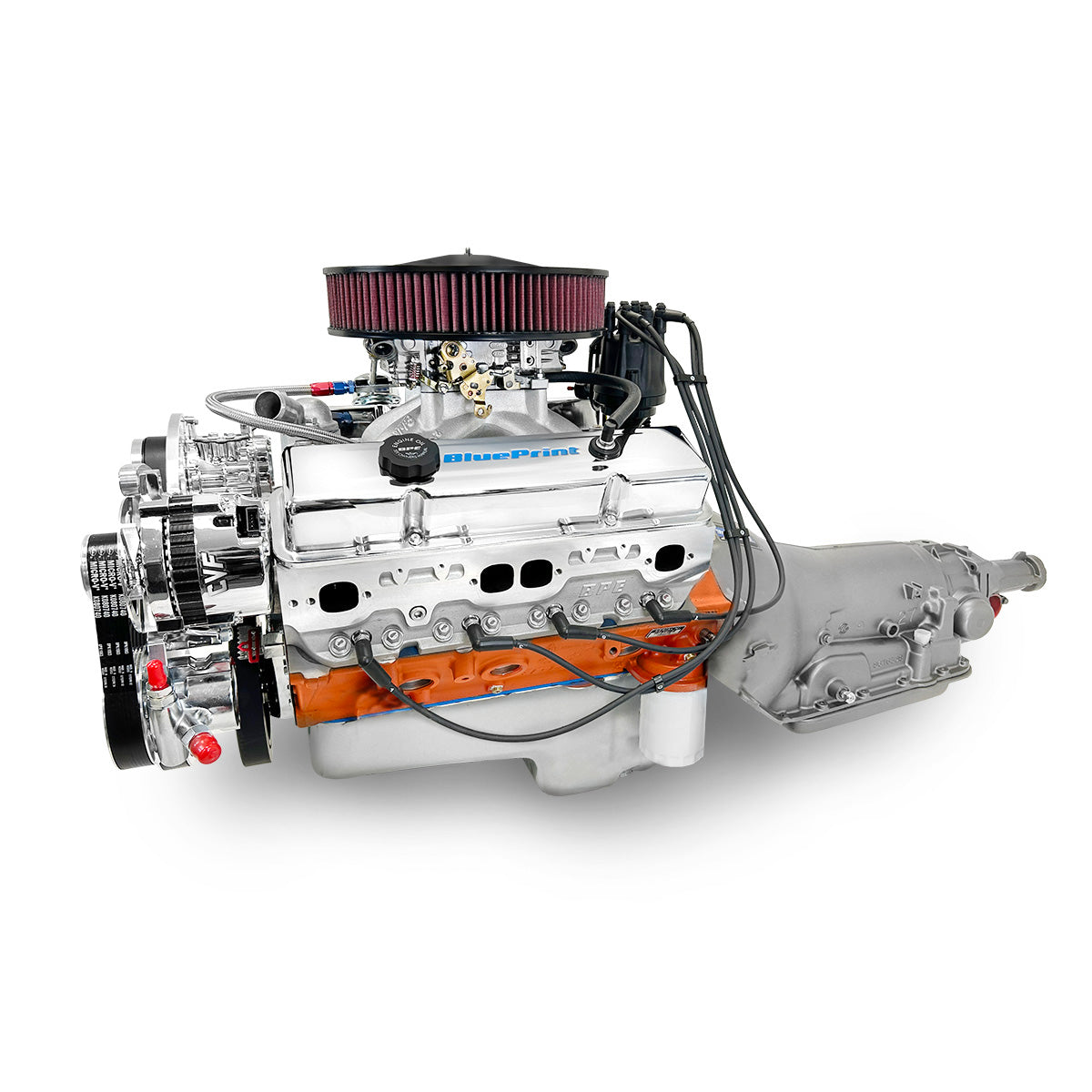

GM Small Block Compatible 427 c.i. Engine and 700R4 Automatic Transmission – 540 Horsepower – Standard Edition Builder Series – Polished Pulley Kit – Carbureted

• Horsepower & Torque: 540 Horsepower / 535 FT. LBS. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• Drilled and Tapped for Clutch Linkage
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.125″ Bore

Rotating Assembly:

• BluePrint Forged Crankshaft
• 4.000″ Stroke
• Forged 6.000″ Connecting Rods
• Forged Pistons
• Internally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads – HP8103
• 64cc Chamber
• 2.08″ Intake / 1.60″ Exhaust Valves
• 220cc Intake / 67cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .577 Intake / .577 Exhaust Lift
• 240 Intake / 248 Exhaust Duration
• @ .050-112 Degree Lobe Separation

Ignition Timing:

• Initial Timing 10-16° and Total Timing 32-34°

Also Includes:

• Polished Front Accessory Drive with Water Pump, A/C Compressor, Alternator, and Power Steering Pump
• Holley 850cfm Double Pumper Carburetor w/ Manual Choke – BPP04781S
• Satin Aluminum Intake Manifold – BPP427454INT
• Pro Series Ready Run Distributor – BPP3503BK
• Thermostat and Thermostat Housing
• Valve Covers – BPP9518
• Spark Plugs and Wires
• Electric Fuel Pump
• Timing Cover
• Oil Pan

Assembled with Complete 700r4 Automatic Transmission Package:

• 700R4 Complete Package
• 2200-2400 Stall Torque Converter
• Flex Plate
• Starter

Notes:

• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• Not for use in pollution-controlled vehicles.
• Due to numerous tire/rear gear combinations, this transmission does NOT ship with a speedometer gear, or sender housing.
• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
